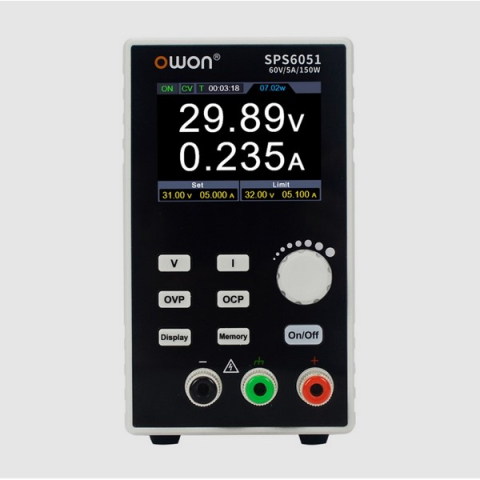

Owon SPS6051 SPS Series Fanless Single Channel Programmable DC Power Supply 150W 0-61V/0-5.1A 10mV/1mA

SPS Series Fanless Single Channel Programmable DC Power Supply 150W 0-61V/0-5.1A 10mV/1mA

Features:

• Fanless design: Ultra-quiet and reduces the vibration noise and potential failure risks of traditional cooling fans.
• Excellent heat dissipation design: Long-term operation under full load conditions ensures controlled temperature rise for internal component longevity.
• Lightweight and ultra-thin design.
• Output accuracy up to 10mV/1mA.
• Support List waveform editing and output, 4 groups of memory shortcut parameters for quick output.

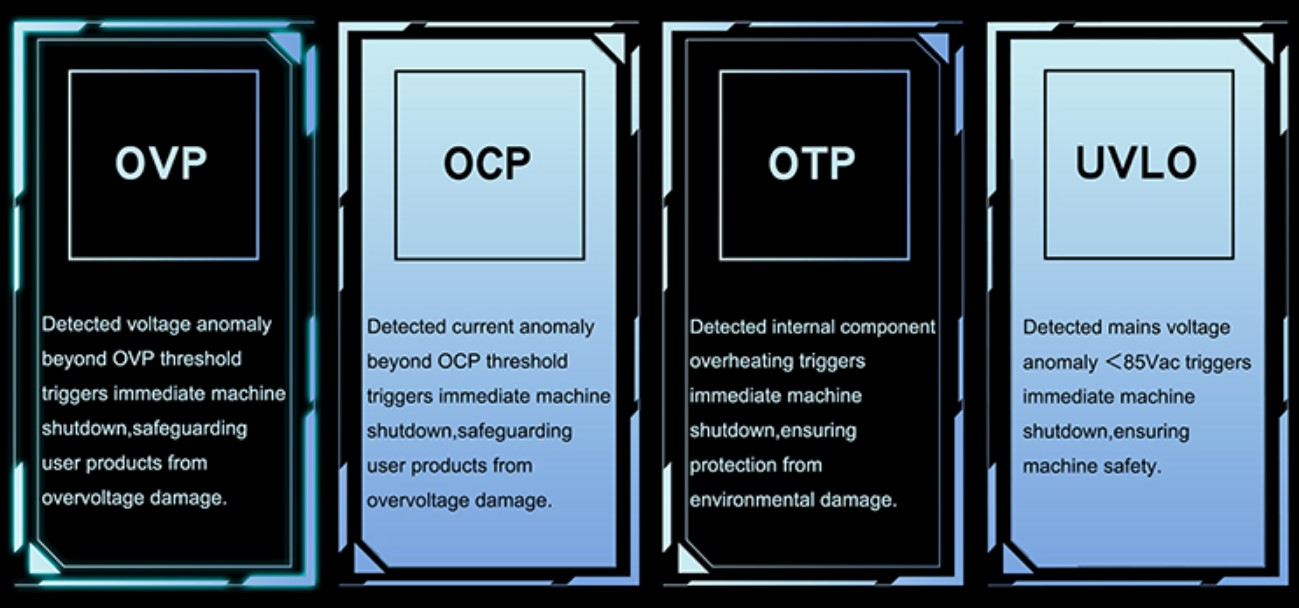

• Integrated protection features include overvoltage, overcurrent, overtemperature and input undervoltage.
• The output includes a built-in discharge circuit to prevent residual high voltage risks when the power is turned off.

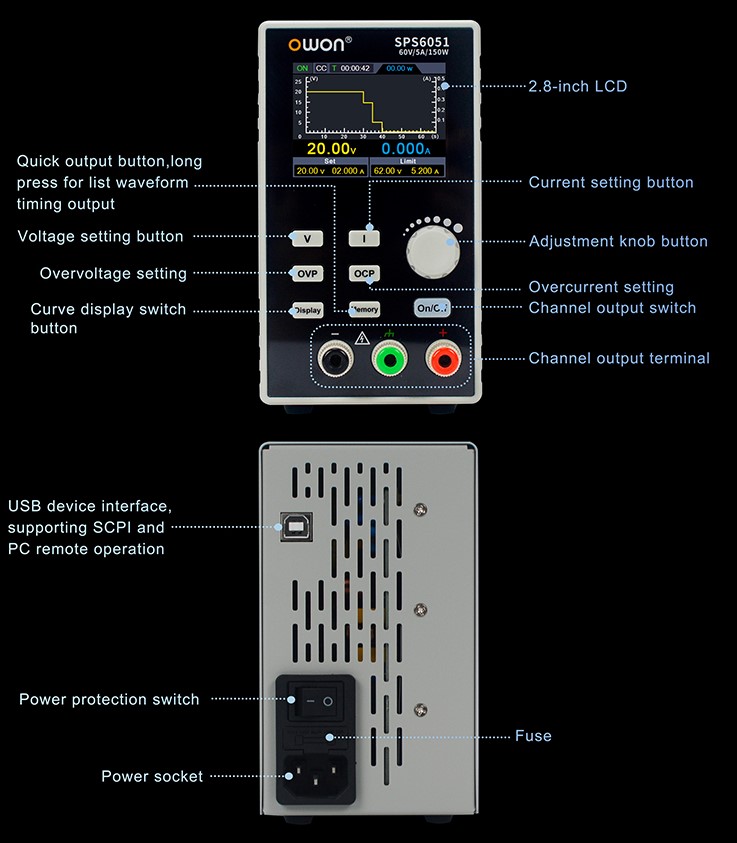

• Offers USB communication interface and supports SCPI protocol, allowing PC programming and remote control, simplifying user remote management.
• 2.8-inch TFT LCD screen

Silent Operation, Silent Power

The SPS features a fanless design, reducing noise and failure risks, providing a quiet and reliable environment.

Ultimate Cooling, From The Inside Out

Long-term operation under full load conditions ensures controlled temperature rise for internal component longevity. The touchable surface enhances user comfort.

Circuit Guardian, Safety Assured

Nothing is More Important than Stability

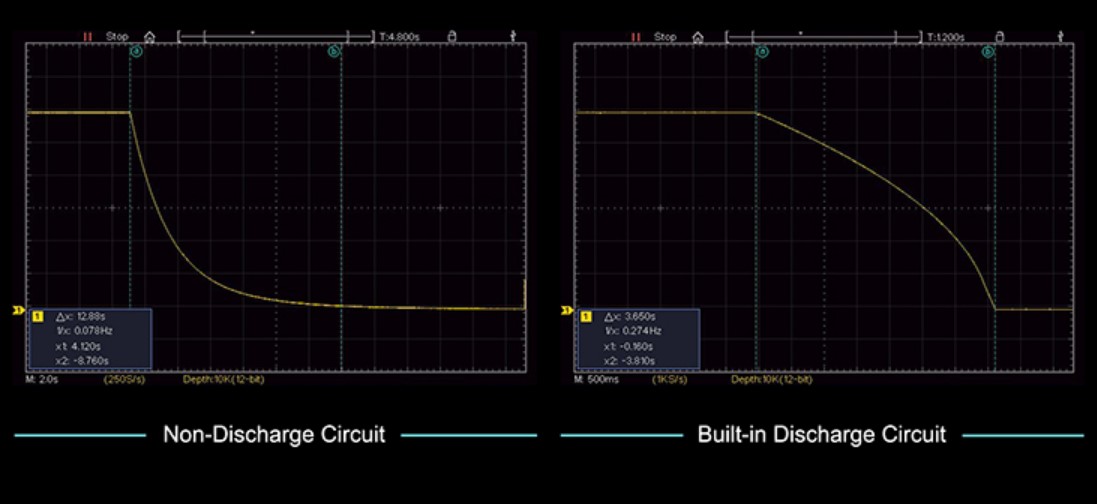

Built-in Discharge Design: Safeguarding Equipment, Trusting Every Drop of Power. Built-in discharge circuit ensures no residual high voltage risk when power is turned off.

Ultimate Clean Power Supply, Safeguarding Your Precision World

Excellent ripple and noise ensure stable operation, improved performance, extended lifespan, and reduced electromagnetic interference for electronic devices.

Suspass Performance, Expanding Possibilities

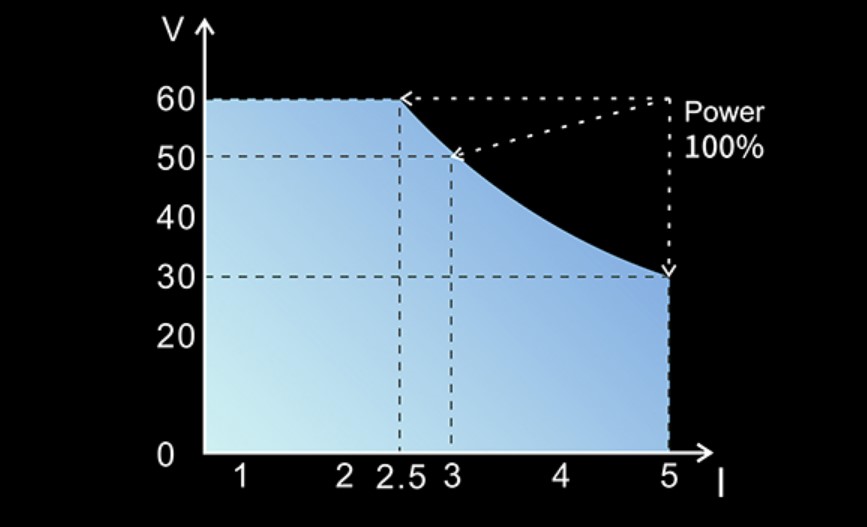

1. Constant Power Design

Allowing higher voltage and current within rated power range, flexible configuration, one unit equals multiple units.

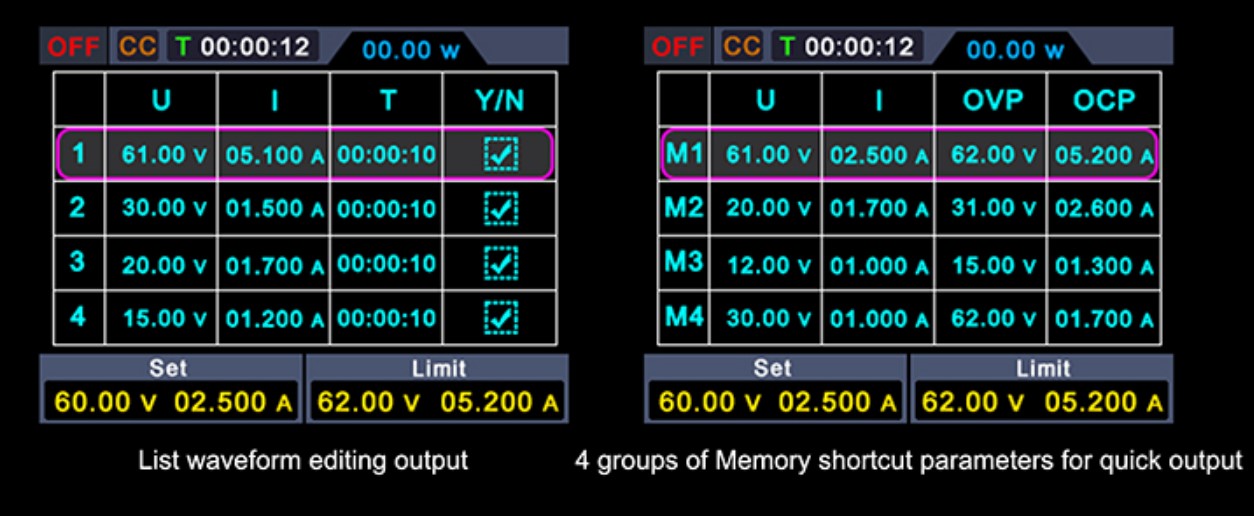

2. Flexible waveform editing and quick configuration

Support List waveform editing and output, 4 groups of memory shortcut parameters for quick output.

3. Curve Waveform Monitoring and Data Recording

Equipped with voltage and current waveform monitoring, capable of online data recording for 1 minute, enabling source meter integration for users to easily identify and capture anomalies.

4. Convenient Communication Interface

Offers USB communication interface, compatible with SCPI protocol, allowing PC programming and remote control, simplifying user remote management.

5. Two Output Settings for Various Needs

Independent Output Switch Control (default) for Circuit Protection. Long-press Output Button to Automatically Activate Output 5 Seconds After Power On.

Package Includes:

• Power Cord
• Quick Guide
• USB Cable
• Test Leads

For more information, please see Specifications and User Manual
