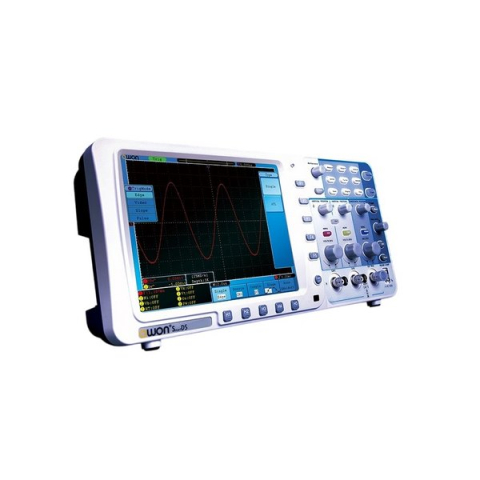

Owon SDS7102V SmartDS Series Digital Oscilloscope 100MHz 1GS/s 2CHs+1 External with VGA

SmartDS Series Digital Oscilloscope

Features:

• Bandwidth: 100MHz
• Sample rate: 1GS/s
• 10M record length for each channel
• Multi-function: auto-scale, Pass / Fail, and current-measuring
• LAN remote control
• Supported SCPI and labVIEW
• Smart design with easy portability
• Large 8 inch 800 x 600 pixels display

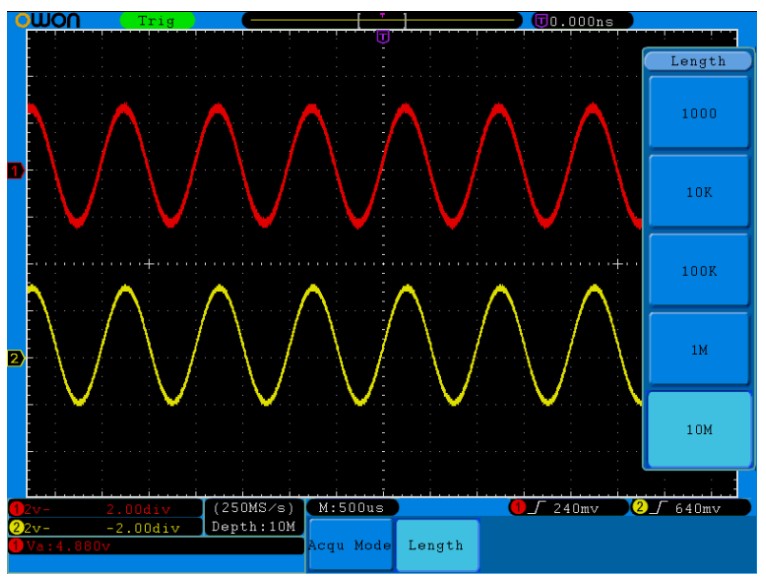

1. 10M Record length

SDS series employ 10Mpts record length, waveform detail is easy to track. Keep the maximum sample rate at longer period, capture every waveform change.

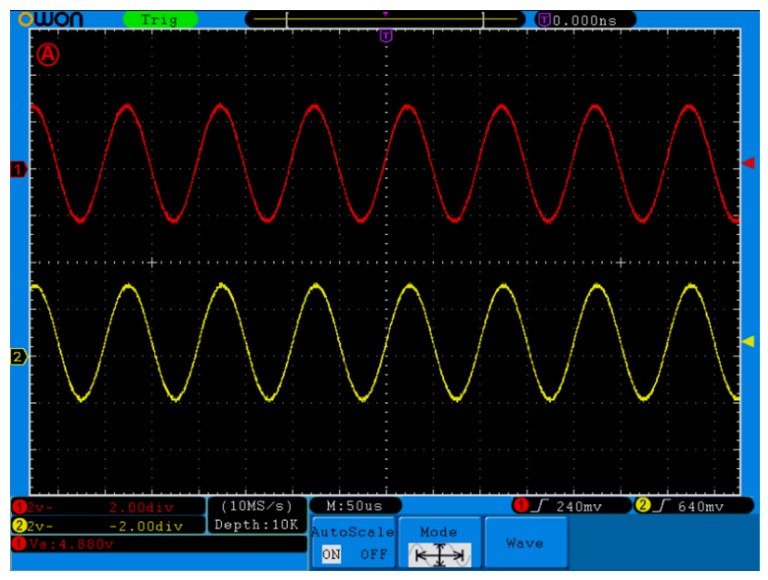

2. Auto-scale function

While in auto-scale status, the oscilloscope will switch to the specific trigger mode, vertical scale and timebase scale according to the type, amplitude and frequency of input signal.

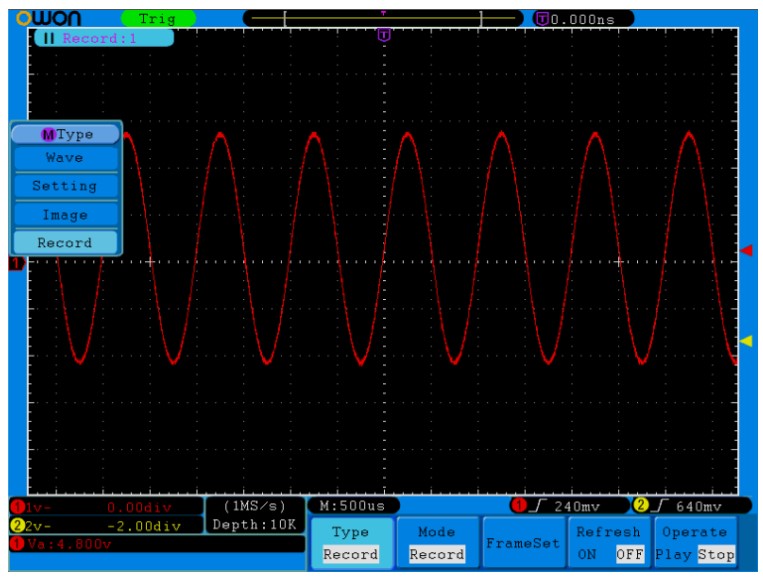

3. Waveform Record/Play

SDS series waveform record/play function support 2-channel waveform record.Moreover, Pass/Fail waveform is also able to be recorded. 1000 frames record capacity. Support waveform replay to analyzer the detail.

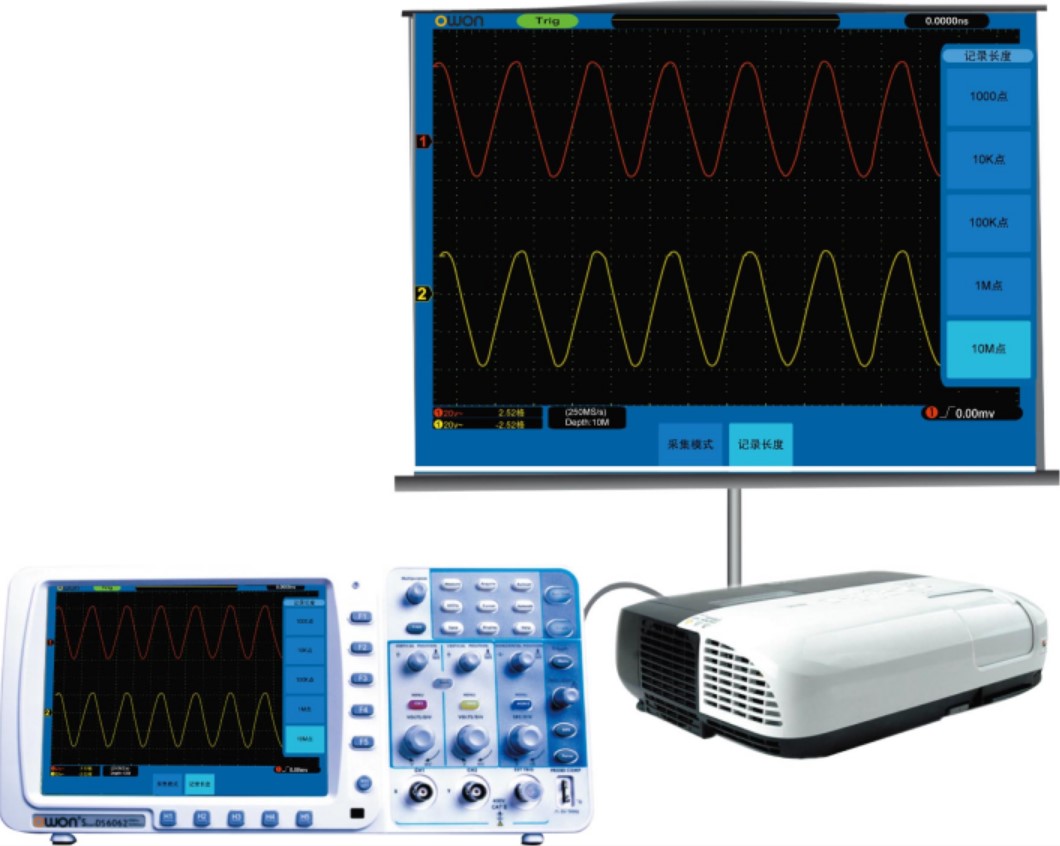

4. SVGA Function

SDS oscilloscope provide 800 x 600 SVGA port. Oscilloscope content can display on external monitor or projector in this way. It helps with production line monitoring, meeting discuss and course display.

Package Includes:

• Power Cord
• Quick Guide
• CD Rom
• USB Cable
• Probe
• Probe Adjust

For more information, please see Specifications and User Manual
