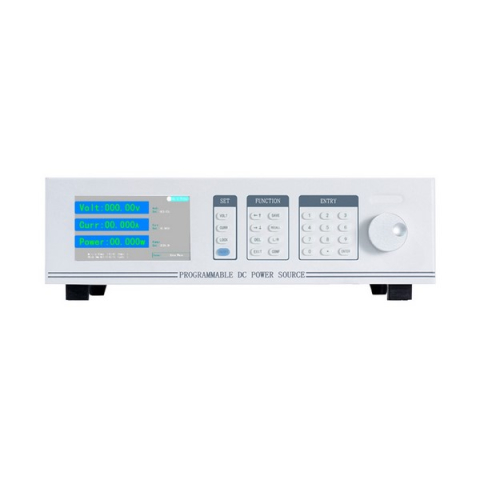

Owon OWP1010H OWP-H Series High Power DC Power Supply 100.00V 15.000A 1000W CAN RS485 Dry Node/Analog

OWP-H Series High Power DC Power Supply

Features:

• 2U/3U standard embedded height
• High output resolution 1mV / 0.1mA
• Constant power output, and wider output voltage, current range
• SCOPE display mode to read voltage / current / power curve directly
• CV / CC priority, with adjustable rise/fall time
• List edit function for 50 group timed output
• Function generating function to get access to rich dynamic waveform
• Remote voltage compensation
• Parallel by multi-device to expand power range up to 128KW
• Support to save/recall 128 group application data
• 4.3" TFT LCD
• Standard RS485 communication interface, and optional dry node/analog interface
• Smart temperature sensitive fan

Wider auto range

When at constant power, the free switch between different voltage / current range makes wider output possible.

CC/CV priority function

Parallel connection

Via parallel connection, the extended power output by max 6 device of same model could reach 128KW, further, flow equalization assures the balanced power output.

List sequence programming

Up to 50 steps supported.

Conditional sequence editting

Up to 50 steps supported. At given voltage / current judging condition, the device changes the output as per editted steps.

Function generator mode

Via this mode, it is possible to get access to regular waveforms, incl. sine, triangle, sawtooth, rectangle, pulse and zigzag, and their combination waveforms as well, then to apply the waveforms to the output voltage / current.

These waveforms will display necessary parameters: the benchmark, the number of cycles, waveform amplitude, time and a complete set of configuration parameters.

Package Includes:

• Quick Guide
• Power Cord

For more information, please see User Manual
