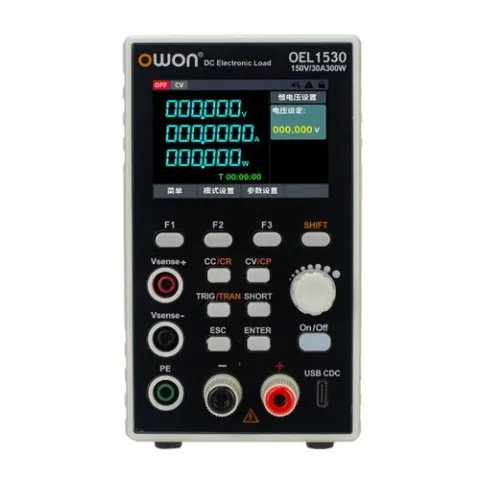

Owon OEL1530 Programmable DC Electronic Load 300W 150V / 30A, CC/CV/CR/CP, USB/RS232

Features

• Compact size, portable and movable high-performance programmable electronic load
• Rated parameters: 150V voltage, 30A current, and 300W power capacity
• 2.8-inch TFT color LCD display
• Four operation modes: CV, CC, CR, CP
• Supports dynamic current testing up to 5kHz
• High resolution readback: 1mV/0.1mA
• Supports remote sensing compensation
• Multiple protections including OVP/OCP/OPP/OTP
• RS232, USB Device, SCPI protocol support, and optional RS485
• Optional test functions: Battery Discharge Test, OCP Test, OPP Test (Order No. OEL-T1); Ripple Test (Order No. OEL-V)
