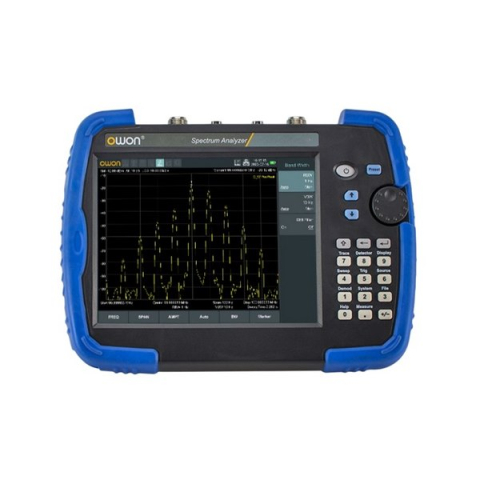

Owon HSA1036-TG HSA1000TG Series Handheld Spectrum Analyzer 3.6GHz with Tracking Generator and GPS Receiver

HSA1000TG Series Handheld Spectrum Analyzer 3.2GHz with Tracking Generator and GPS Receiver

Features:

• -160dBm Displayed Average Noise Level
• Phase Noise -106dBc/Hz at1Gz and offset at 10KHz
• Total Amplitude Accuracy <0.7dB
• 1Hz Minimum Resolution Bandwidth (RBW)
• Standard GPS receiver
• EMI Pre-compliance Test Kit
• Up to 7.5 GHz Tracking Generator Kit
• 8 inches IPS touchscreen display, wider viewing angle
• Li-ion battery, operating life up to 4-6 hours

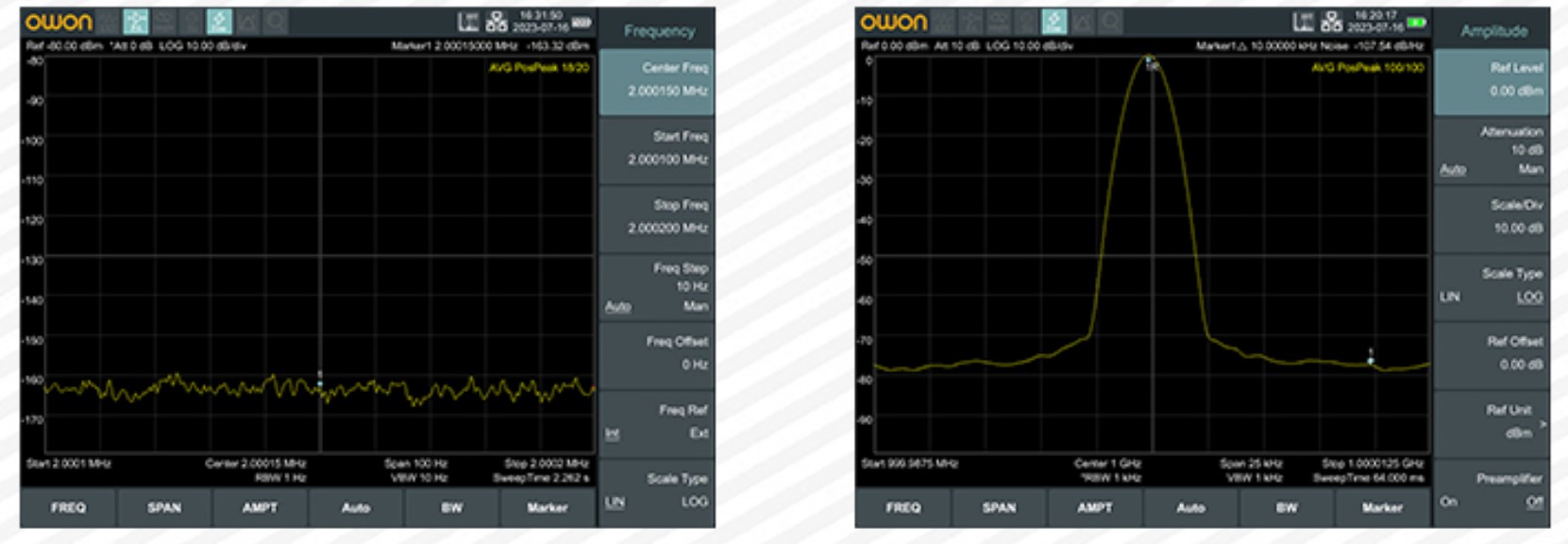

Excellent small signal measurement capability

160 dBm DANL (Displayed Average Noise Level), can observe weaker small signals.

More accurate low-noise measurements

Phase Noise < - 80 dBc/Hz at1GHz at 10 kHz offset.

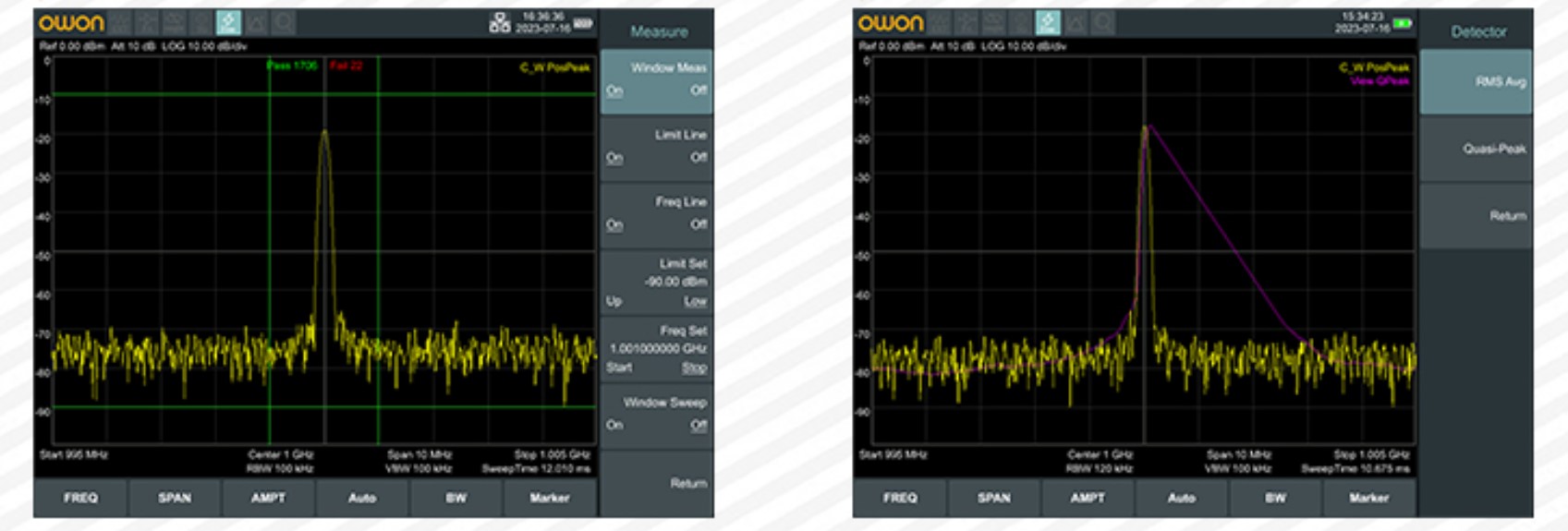

Pass/Fail function

Quickly determine if the test results pass.

Provides EMI pre-compliance test function

Equipped with EMI filter (6dB) and peak detector as standard, it is more accurate for EMI pre-test and diagnosis, and complete testing and production report can be completed by using supporting software.

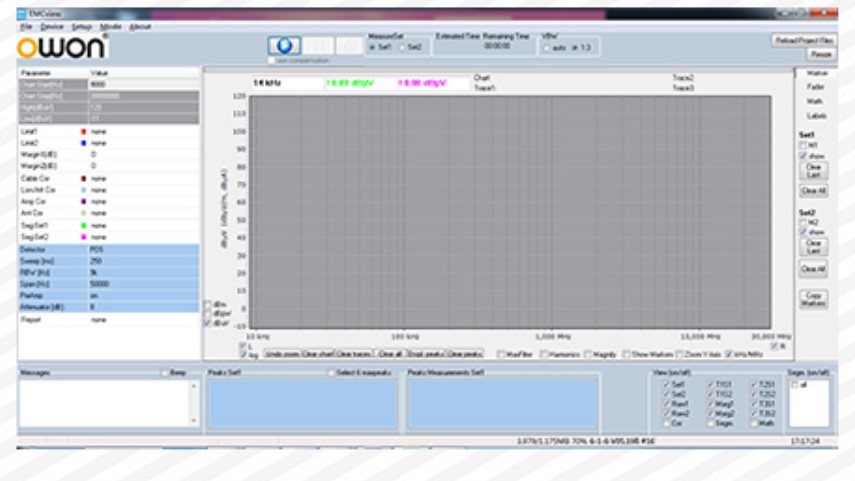

Provide EMC test function on PC (requires optional software)

Built-in more than 200 mainstream EMC test standards and regulations templates. The user selects the corresponding template, and the software automatically the test data. The data and regulation can be compared on the same screen. Users can also customize regulations for comparative analysis.

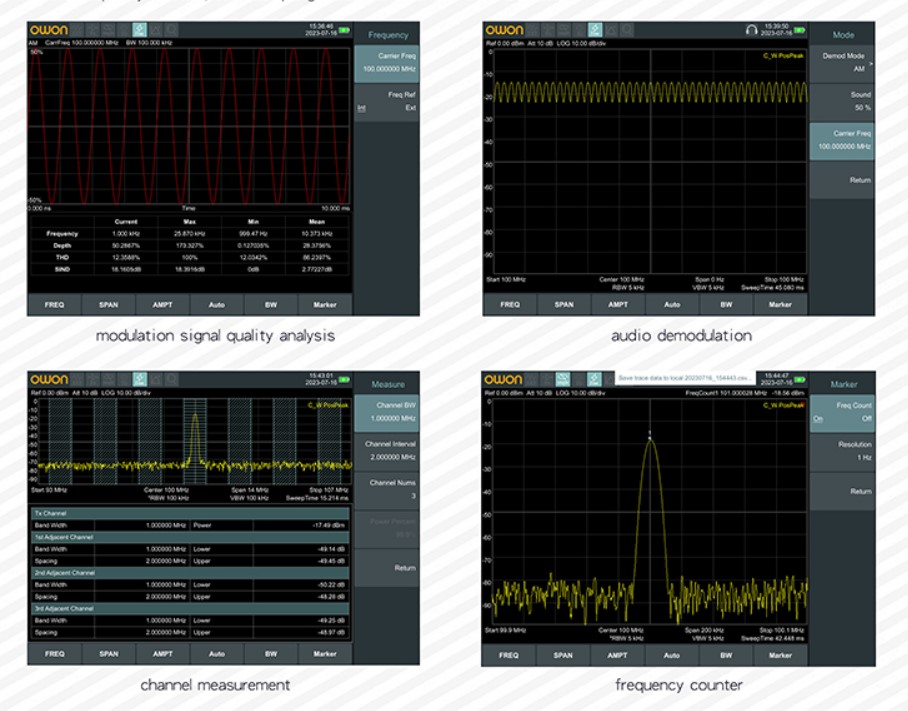

Provide multiple extended function modes

Standard modulation signal quality analysis, audio demodulation, field strength measurement, channel measurement and frequency counter, ect. multiple general and extended test functions.

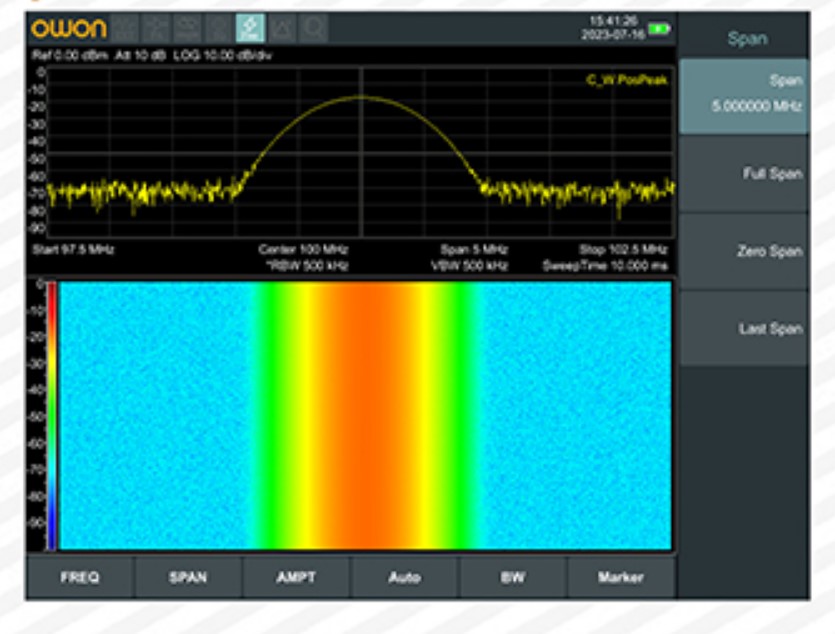

Waterfall plot graphic

View the behavior of varying signal parameters over time, track the frequency and power behavior over the time, particularly intermittent signals. The user can use waterfall plot graphic to analyze the stability of a signal over the time, or to identify intermittent interference signals in communications systems.

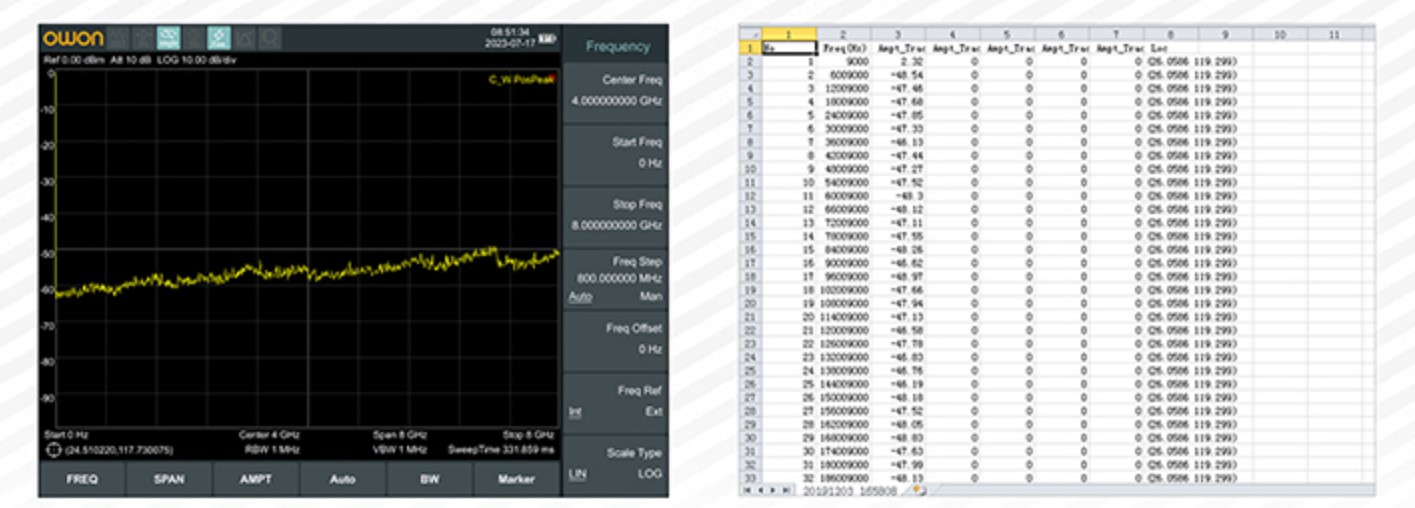

Provide GPS positioning function

Standard GPS antenna connector, optional OWON GPS antenna, the latitude/longitude information and measurement data can be saved as CSV file.

Package Includes:

• Power Cord
• Quick Guide
• Adapter
• GPS antenna

For more information, please see User Manual
