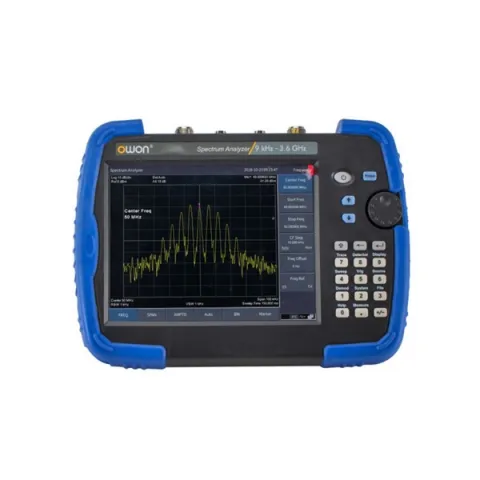

Owon HSA015-TG HSA1000TG Series Handheld Spectrum Analyzer 1.5GHz with Tracking Generator

HSA1000TG Series Handheld Spectrum Analyzer 1.5GHz with Tracking Generator

Features:

• -160dBm Displayed Average Noise Level
• Phase Noise -82dBc/Hz at1Gz and offset at 10KHz
• Total Amplitude Accuracy <1.5dB
• 10Hz Minimum Resolution Bandwidth (RBW)
• EMI Pre-compliance Test Kit
• 8 inches  IPS touchscreen display, wider viewing angle
• Li-ion battery, operating life upto 4-6 hours

More convenient and efficient for field testing

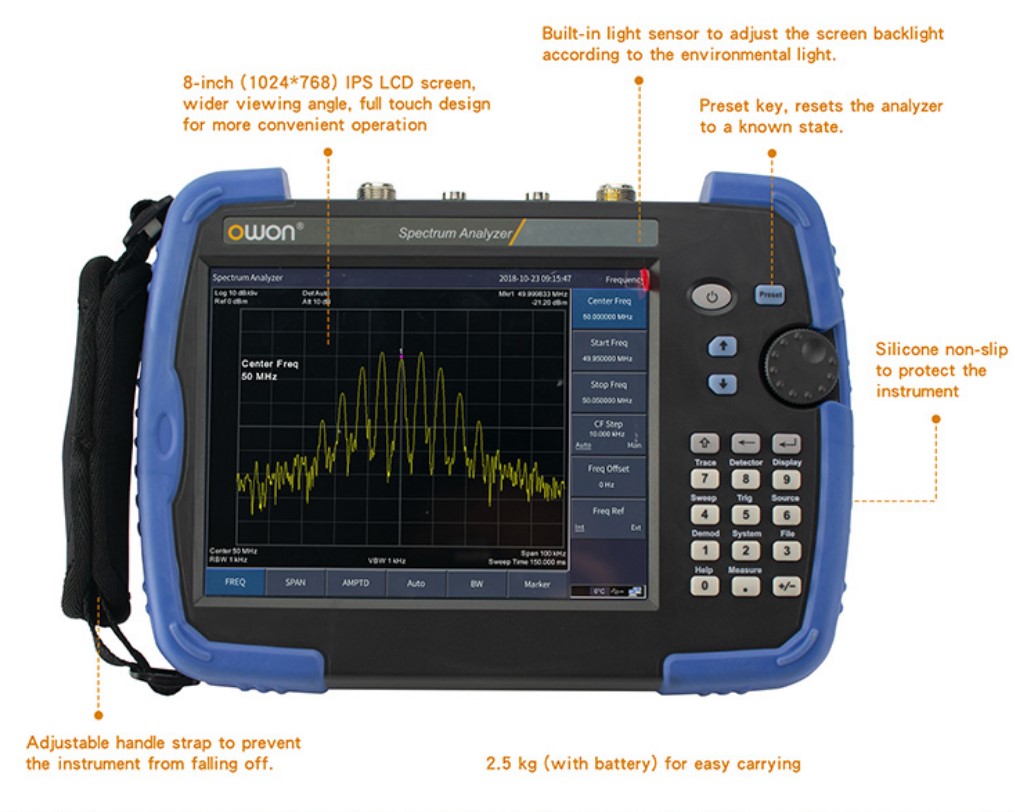

8-inch IPS LCD, wider viewing angle, built-in light sensor to adjust the screen backlight according to the environmental light, provides a superior, bright and clear trace for indoor and outdoor use. There is no need to operate in the shade.

Excellent power management function

Battery operating life up to 4 - 6 hours, you can purchase extra batteries for longer test time, easy battery replacement.

Excellent small signal measurement capability

160 dBm DANL (Displayed Average Noise Level), can observe weaker small signals.

More accurate low-noise measurements

Phase Noise < - 80 dBc/Hz at1GHz at 10 kHz offset.

Pass/Fail function

Quickly determine if the test results pass.

Provides EMI pre-compliance test function

Equipped with EMI filter (6dB) and peak detector as standard, it is more accurate for EMI pre-test and diagnosis, and complete testing and production report can be completed by using supporting software.

Provide EMC test function on PC (requires optional software)

Built-in more than 200 mainstream EMC test standards and regulations templates. The user selects the corresponding template, and the software automatically the test data. The data and regulation can be compared on the same screen. Users can also customize regulations for comparative analysis.

Provide multiple extended function modes

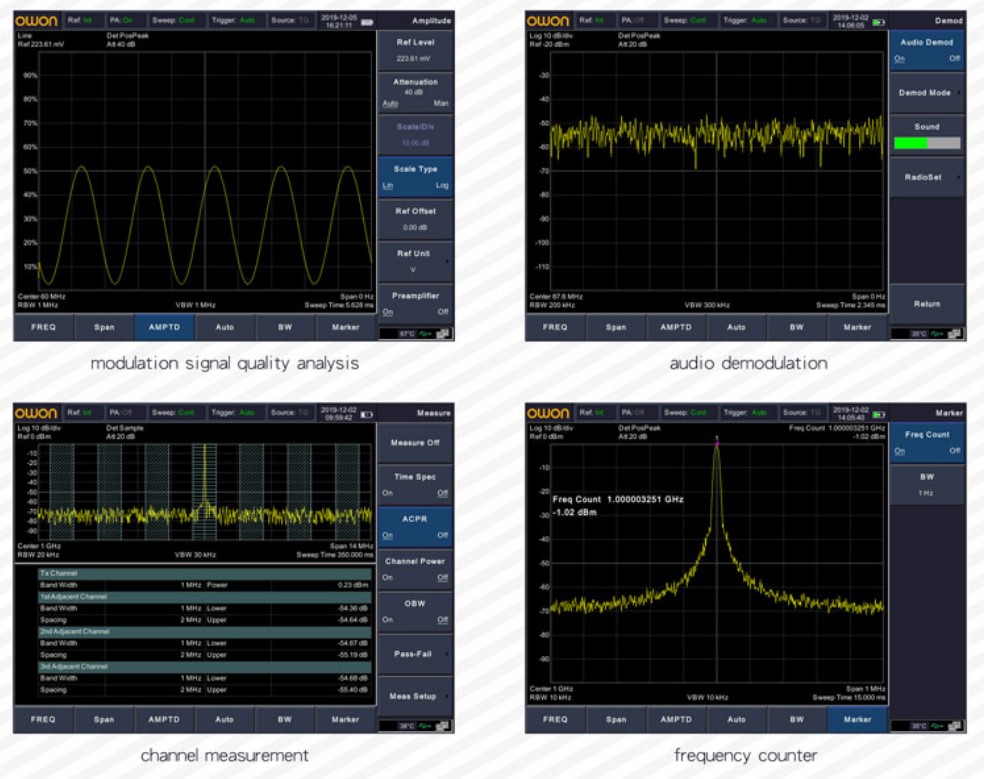

Standard modulation signal quality analysis, audio demodulation, field strength measurement, channel measurement and frequency counter, ect. multiple general and extended test functions.

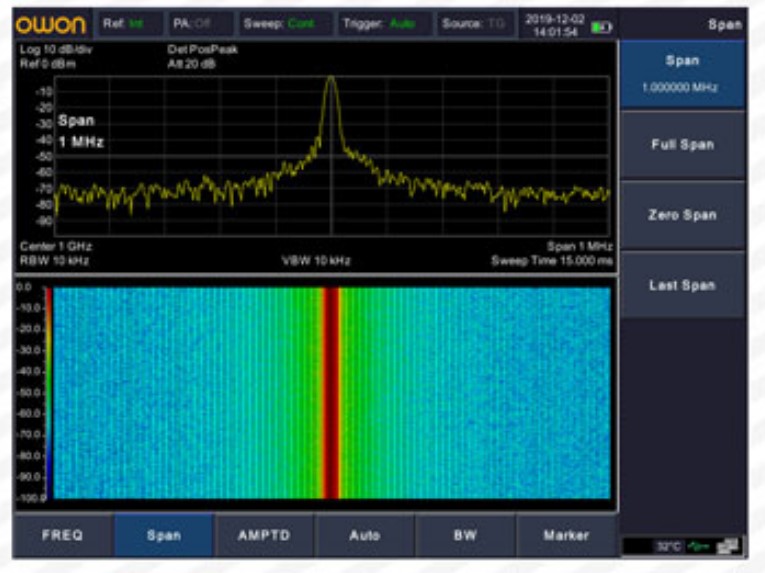

Waterfall plot graphic

View the behavior of varying signal parameters over time, track the frequency and power behavior over the time, particularly intermittent signals. The user can use waterfall plot graphic to analyze the stability of a signal over the time, or to identify intermittent interference signals in communications systems.

Package Includes:

• Power Cord
• Quick Guide
• Adapter
• GPS antenna

For more information, please see User Manual
