Owon FDS1102A FDS Series Multifunction Digital Storage Oscilloscope 100MHz 1GS/s Max 14 bits 10M

ANDROID BASED, NEW EXPERIENCE, MORE POSSIBLE

• Supports external HDMI display, mouse and keyboard, facilitating complex editing operations
• Supports configuring multi-media equipment, such as camera, microphone, speaker and headphone jack, expand more teaching methods
• Supports network communicating via LAN and WIFI (optional module). Users can access web pages through the browser APP
• Built-in Web Server, supports users to control the instrument through the web page
• Quickly save the instrument interface picture and test process video, and easy to review.
• The built-in APP can also be used for document editing and Python secondary development
• 10.4 inch capacitive touch HD display, new design UI, new touch experience

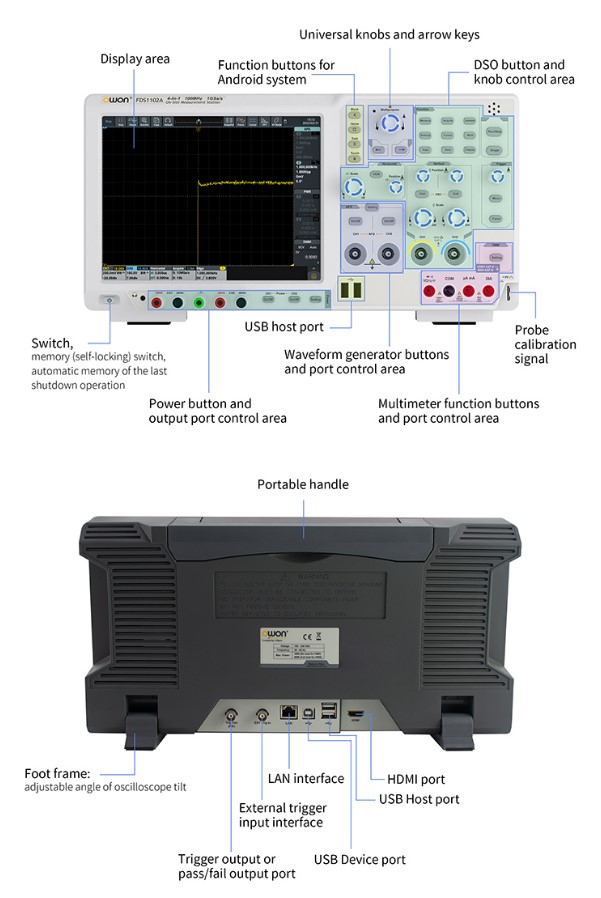

• Rich interface: USB host x4, USB 2.0 device, LAN, HDMI, audio, external trigger input, auxiliary output (trig out, pass/fail)
• Supports SCPI for secondary development

EXCELLENT PERFORMANCE, EASY TO TEST

• Supports edge trigger, slope, pulse width, window, under amplitude, interval, timeout, code type, Nth edge, video trigger, serial bus trigger etc.
• Supports waveform cloning function, complete restore test signal
• The power supply supports series and parallel connection, Max 30W
• Supports custom function of waveform calculation
• Supports FRA chart testing
• Supports digital filtering

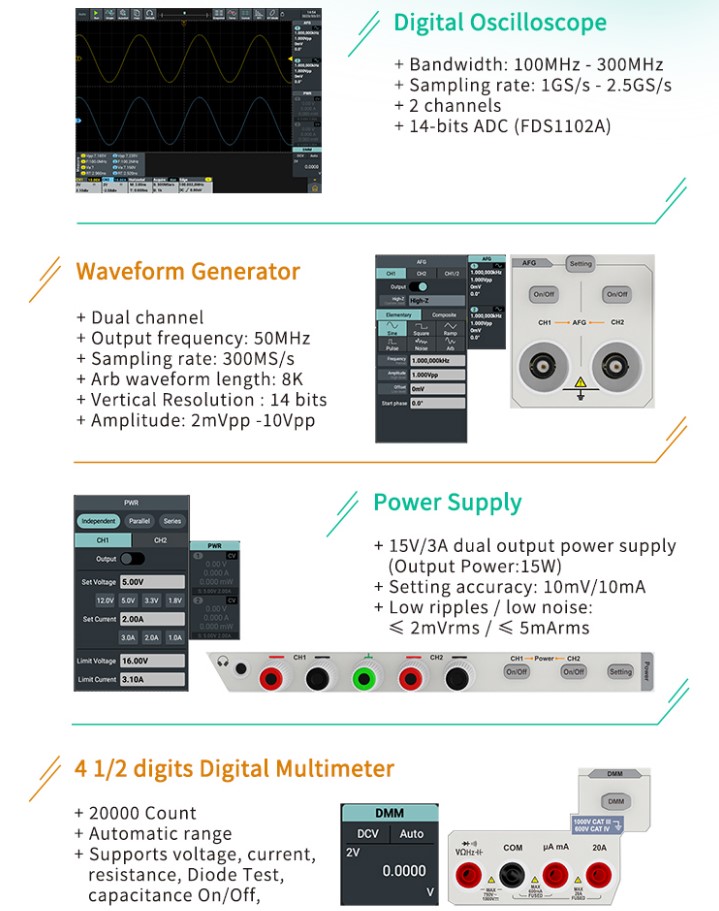

MULTI-FUNCTION HARDWARE INTEGRATION

FUNCTIONAL APPLICATION

14bits ADC high resolution oscilloscope, meet higher precision of test demand

The measuring accuracy is 16 times, 64 times of the ordinary oscilloscope, better presentation more waveform details.

Rich trigger function

With edge, slope, pulse width, window, under amplitude, timeout, Nth edge, video trigger (HDTV supported) and other serial bus trigger functions.

Waveform cloning function

Completely retain the field test signal, and one key copy to the local waveform generator output for further analysis and testing.

Multiple math operations

Supports math operations, supports formula editing custom operations, used to achieve complex math operations.

Frequency Response Analysis (FRA) function

The oscilloscope with built-in signal generator is equipped with FRA function, which can test the frequency response curve or loop stability of the device under test (DUT).

SCPI supported

Convenient for secondary development, the preload Python APP can be used for directly edit and run the development program on the machine.

Built-in Web Server

Supports users to operate the instrument through the web page. Easy to get started from the complete virtual interface, respond fast.

ANDROID BASED DESIGN, MORE APPLICATION SCHEME

Supports external HDMI display, mouse and keyboard. In the teaching application, students can search the data the instrument's wireless internet. The instrument also supports variety of standard teaching documents and videos playing.

EXCELLENT USER INTERFACE AND USER EXPERIENCE

Use a 10.4 inch capacitive touch screen, touch like a mobile phone. Supports variety of gestures to achieve waveform and menu common operations. Supports mouse and keyboard operations, greatly optimized the operation efficiency

Package includes:

• FDS1102A Multifunction Digital Storage Oscilloscope
• Power Cord
• Quick Guide
• USB Cable
• Probe
• Probe Adjust
• Multimeter Leads
• Q9 Cable
