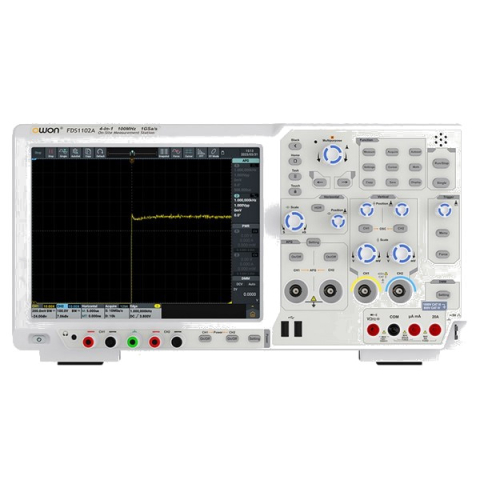

Owon FDS1102 FDS Series Multifunction Digital Storage Oscilloscope100MHz 1GS/s 8 bits 10M

FDS Series Multifunction DSO

Features:

• DSO+AG+Power supply + Multi-meter 4-in-1
• Supports edge trigger, slope, pulse width, window, under amplitude, interval, timeout, code type, Nth edge, video trigger, serial bus trigger etc.
• Supports FRA chart testing
• Android based, new experience, more possible
• Supports external HDMI display, mouse and keyboard, facilitating complex editing operations
• Supports configuring multi-media equipment, such as camera, microphone, speaker and headphone jack, expand more teaching methods
• Rich interface: USB host x4, USB device, LAN, HDMI
• 10.4 inch capacitive touch HD display

Android Based, New Experience, More Possible

• Supports external HDMI display, mouse and keyboard, facilitating complex editing operations
• Supports configuring multi-media equipment, such as camera, microphone, speaker and headphone jack, expand more teaching methods
• Supports network communicating via LAN and WIFI. User can access web pages through the browser APP.
• Built-in Web Server, supports users to control the instrument through the web page.
• Quickly save the instrument interface picture and test process video, and easy to review.
• The built-in APP can also be used for document editing and Python secondary development.
• 10.4 inch capacitive touch HD display, new design UI, new touch experience.
• Rich interface: USB host x4, USB 2.0 device, LAN, HDMI, audio, external trigger input auxiliary output (trig out, pass/fail)
• Supports SCPI for secondary development

Excellent Performance, Easy to Test

• Supports edge trigger, slope, pulse width, window, under amplitude, internal, timeout, code type, Nth edge, video trigger, serial bus trigger
• Supports waveform cloning function, complete restore test signal
• The power supply supports series and parallel connection, Max 30W
• Supports custom function of waveform calculation
• Supports FRA chart testing
• Supports digital filtering

Multi-Function Hardware Integration

Functional Application

Frequency Response Analysis (FRA) function

The oscilloscope with built-in signal generator is equipped with FRA function, which can test the frequency response curve or loop stability of the device under test (DUT).

SCPI supported

Convenient for secondary development, the preload Python APP can be used for directly edit and run the developmrnt program on the machine.

Built-in Web Server

Supports users to operate the instrument through the web page. Easy to get started from the complete virtual interface, respond test.

Product Structure Analysis

Package Includes:

• Power Cord
• Quick Guide
• USB Cable
• Probe
• Probe Adjust
• Multimeter Leads
• Q9 Cable

For more information, please see Specifications
