Overview
DGE3000 series Arbitrary Waveform Generator
Features:
- Max 60MHz frequency output,300MSa/s Sample rate
- 14 bits Vertical Resolution,100K Arb waveform length
- Comprehensive waveform output : 5 basic waveforms, and 160 built-in arbitrary waveforms
- Comprehensive modulation functions : AM, FM, PM, PWM, FSK, 3FSK, 4FSK, PSK, ASK, BPSK, OSK, DSBAM, QPSK, SUM, sweep, Burst
- SCPI and LabVIEW supported
- 3.6 inch (480 x 272 pixels) TFT LCD, all settings can be fully displayed

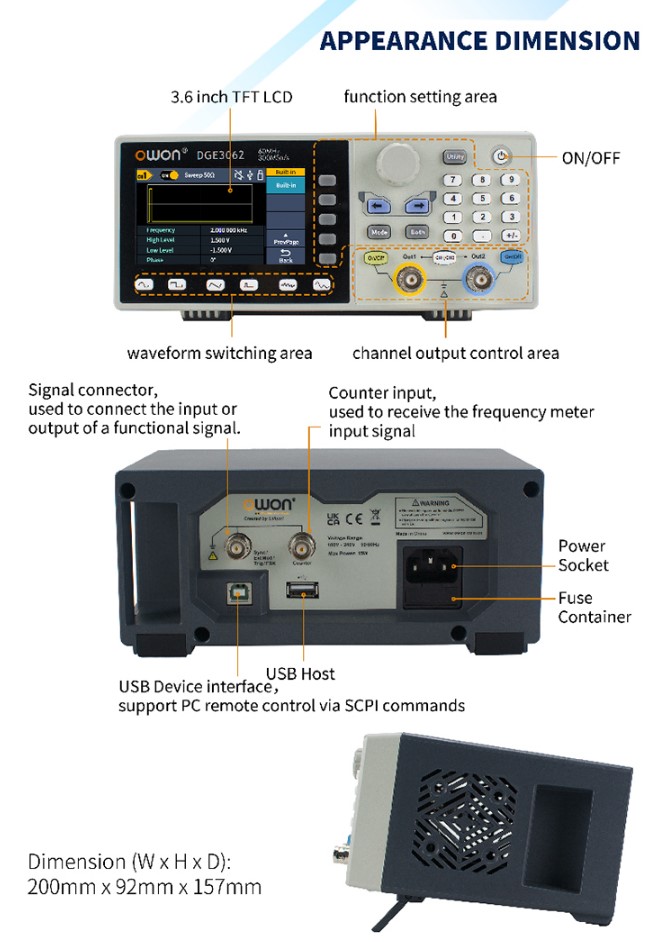

3.6 inch LCD Display
DGE3000 Series adopt 3.6 inch TFT color LCD display, each channel output waveform status and menu settings can be fully displayed on the screen. With convenient shortcut key, it makes man-machine interaction more convenient and effectively improve efficiency.

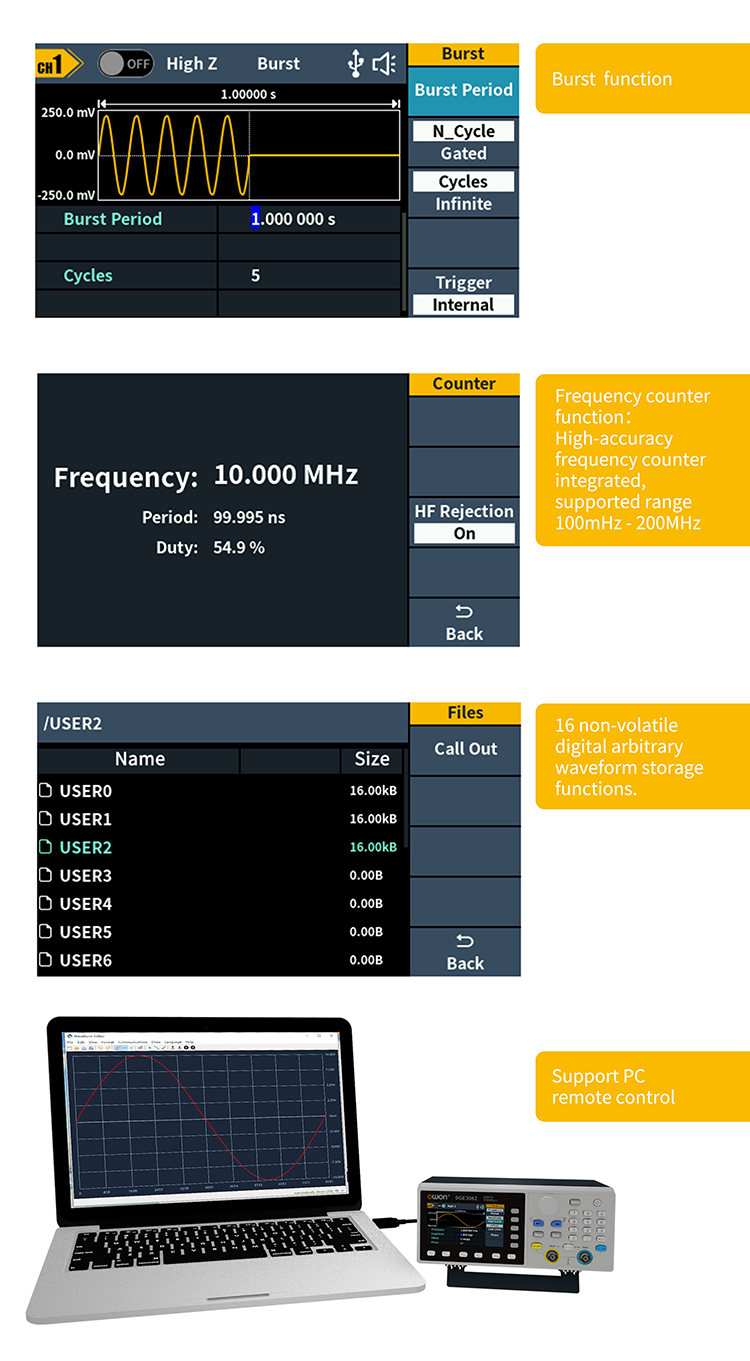

Function Introduction
Package Includes:
- Power Cord
- Quick Guide
- USB Cable
- Q9 Cable
- BNC to Alligator Clip
For more information, please see Specifications and User Manual
