Overview

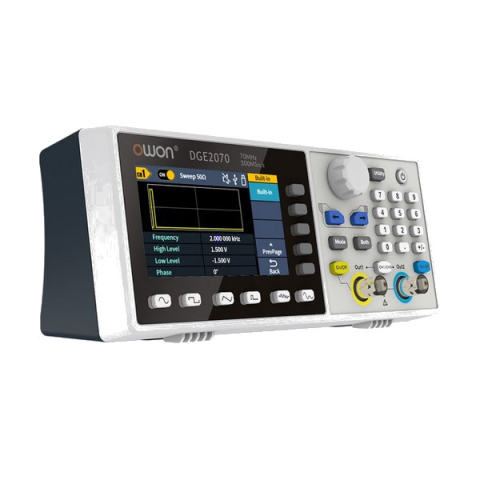

DGE2000 series Arbitrary Waveform Generator
Features:
- 70MHz frequency output
- Max 300MSa/s Sample rate,Vertical resolution 1μHz
- 14 bits Vertical Resolution,8K Arb waveform length

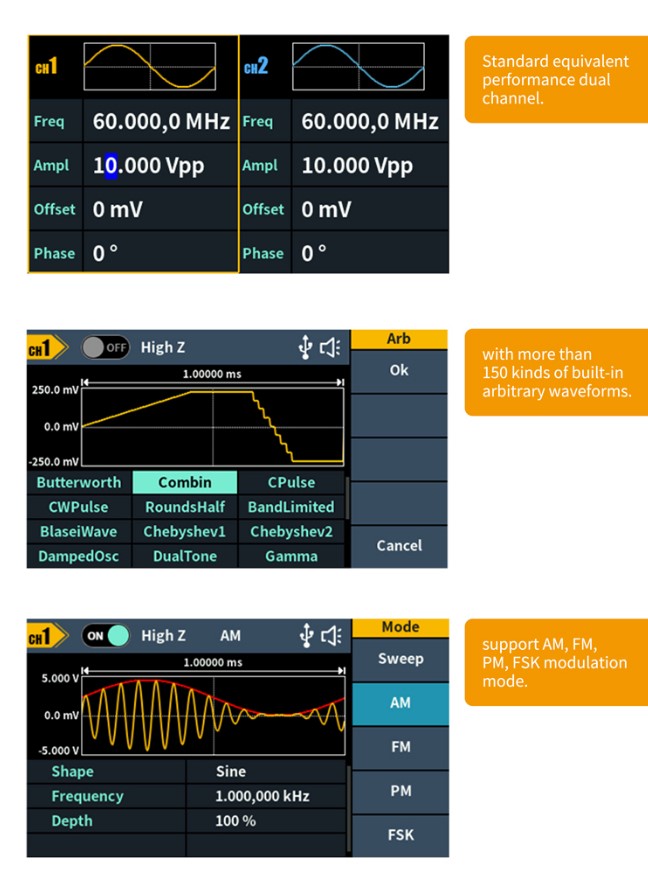

- Comprehensive waveform output : 5 basic waveforms, and 150 built-in arbitrary waveforms

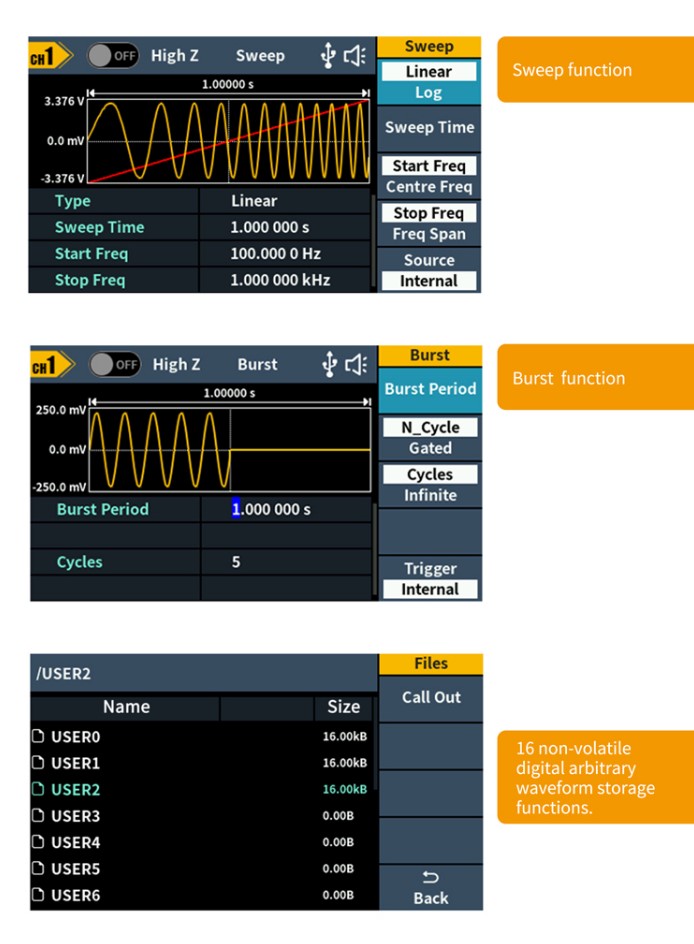

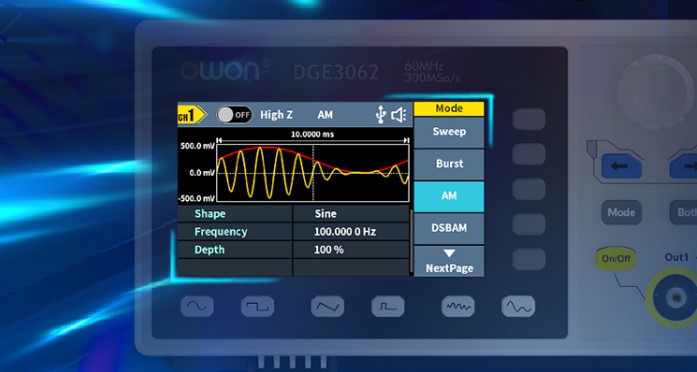

- Comprehensive modulation functions : AM, FM, PM, FSK, Sweep, and Burst
- SCPI supported
- 3.6 inch (480 x 260 pixels) LCD

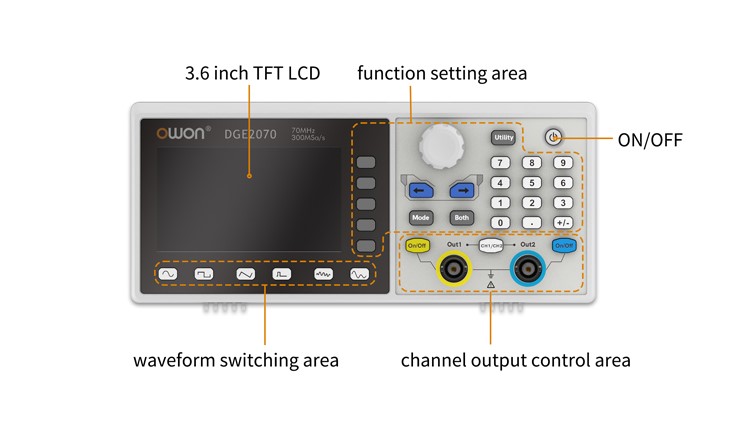

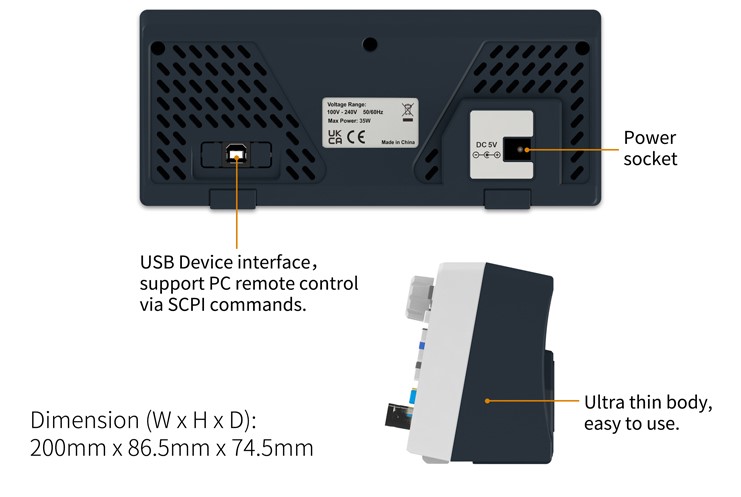

Appearance Dimension
3.6 inch LCD Display
DGE3000 Series adopt 3.6 inch TFT color LCD display, each channel output waveform status and menu settings can be fully displayed on the screen. With convenient shortcut key, it makes man-machine interaction more convenient and effectively improve efficiency.
Function Introduction
Package Includes:
- Power Adpter
- Quick Guide
- Q9 Cable
- BNC to Alligator Clip
- USB to DC Cord
For more information, please see Specifications and User Manual
