Owon CM2100B CM2100 Series Smart AC/DC Clamp Meter 600V 100A 20000 Display Count Bluetooth

CM2100 Series Smart AC/DC Clamp Meter 600V 100A 20000 Display Count Bluetooth

Features:

• AC/DC current, AC/DC voltage
• 20000 count true RMS automatic range clamp meter
• Standard non-contact AC voltage sensing (NCV) function
• VFC mode can filter high-frequency interference signals to ensure accurate measurement data.
• AC frequency response up to 1000Hz
• Small size, easy to carry
• Bluetooth communication function, supporting Android and Apple phones, enabling remote data viewing and instrument control
• Support the recording function, record and analyze the measured values, share the recorded data, and work together

Recorder Function

Automatically record the measured value of the monitoring object according to the user setting, and display it in icon mode to see the change trend at a glance. At the same time, the recorded data (CSV File) can be shared to the computer for further analysis.

Offline Storage Function

1. Setup the sampling interval (1s to 42s) and the number of recorded points (0 to 100 points), when the clamp meter is disconnected from the phone, the internal chip-set will automatically save the data.

2. After recorded, to analyzing the data, just need to use the mobile APP to read the data in the table.

Comparative Analysis of Different Instruments

Use the same APP to connect different meters, except the clamp meter, OW Series & B Series multimeter are also available to be connected. You can comparative analysis these different instrument measurement parameters.

Alarm Function

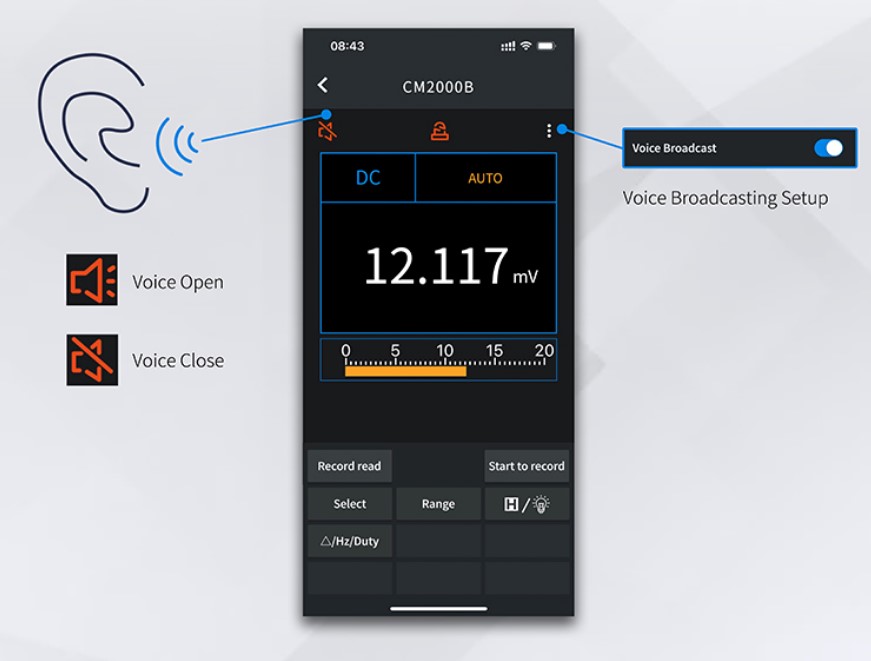

Voice Broadcasting Function

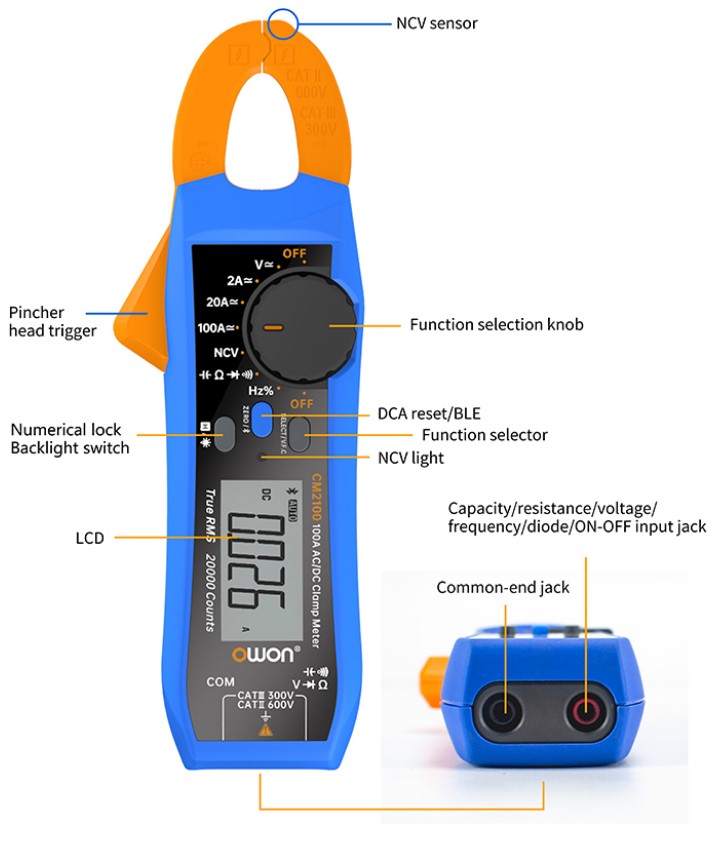

Product Structure Analysis

Complete adhesive cover, better using feels, better resistance to falls.

Package Includes:

• Quick Guide
• Multimeter Leads
• Soft Bag
• Bolt Driver

For more information, please see Specifications and User Manual
