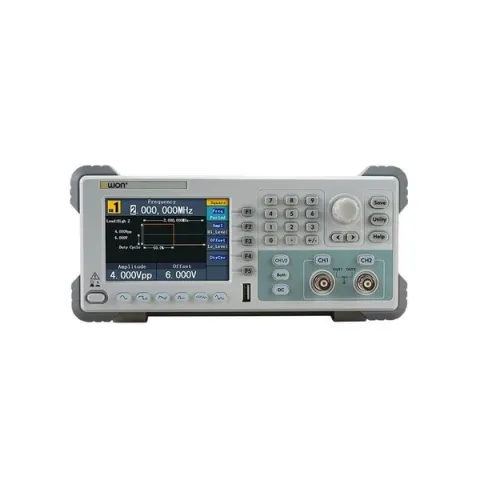

Owon AG1022F AG Series Arbitrary Waveform Generator with Counter 25MHz 125MS/s 14bits 2CHs

AG Series Arbitrary Waveform Generator with Counter 25MHz 125MS/s 14bits 2CHs

Features:

• Advanced DDS technology
• Up to 250MS/s sample rate, and 1μHz frequency resolution
• Vertical Resolution: 14 bits, up to 1M arb waveform length
• Comprehensive waveform output: 5 basic waveforms, and 45 built-in arbitrary waveforms
• Comprehensive modulation functions: AM, FM, PM, FSK, PWM, ASK, PSK, Sweep, and Burst
• High-accuracy frequency counter integrated, supported range 100mHz - 200MHz
• Supported SCPI
• 4 inches high resolution (480 x 320 pixels) TFT LCD display

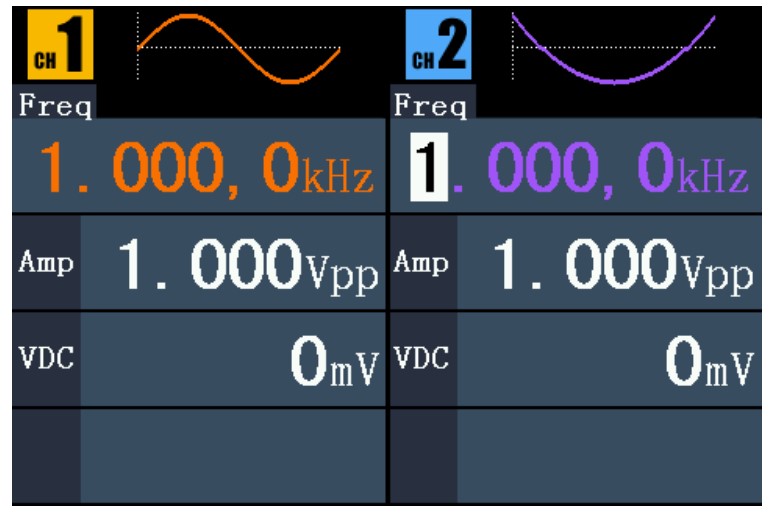

1. Dual Channel Equivalent Output

Dual equivalent channel output. Waveform and status copy can be implement between channels, frequency/amplitude/phase coupling.

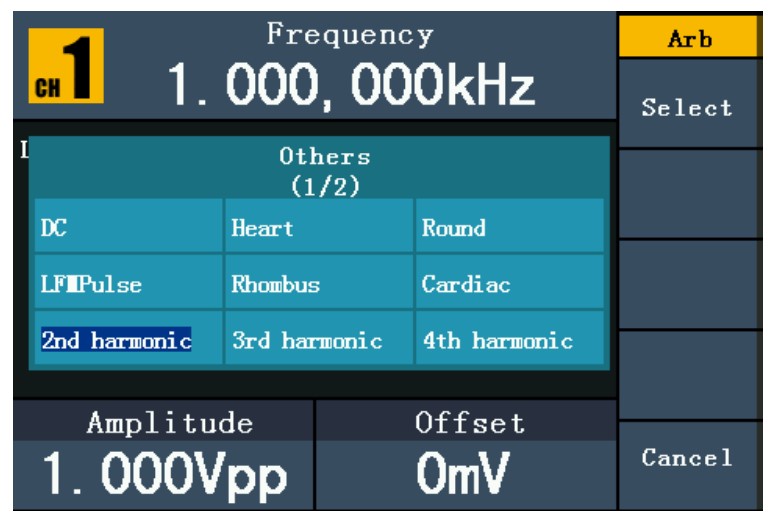

2. Build-in 45 arbitrary waveforms

Build-in educational/industrial common waveforms and divide it into common, math, engineer, window, other types.

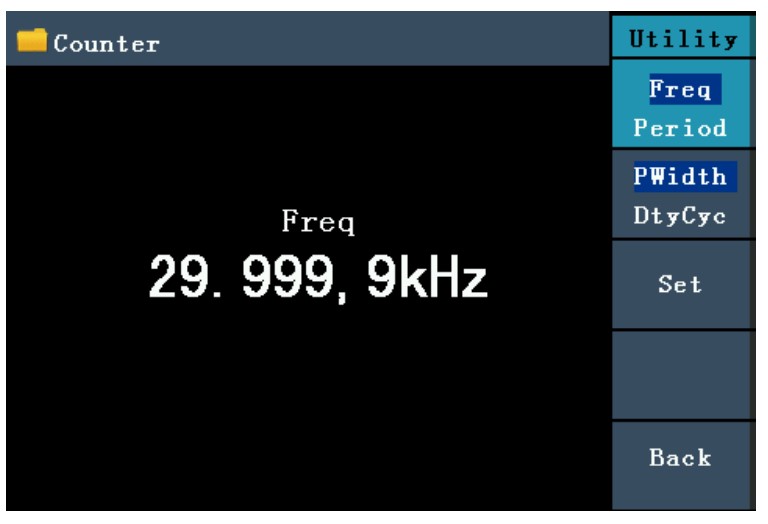

3. Build-in 200MHz hardware counter

6 bits/sec frequency rate, frequency measure ranges from 100MHz ~ 200MHz. Signal time, duty cycle and pulse width can be measured.

Package Includes:

• Power Cord
• CD Rom
• Quick Guide
• USB Cable
• Q9 Cable

For more information, please see Specifications and User Manual
