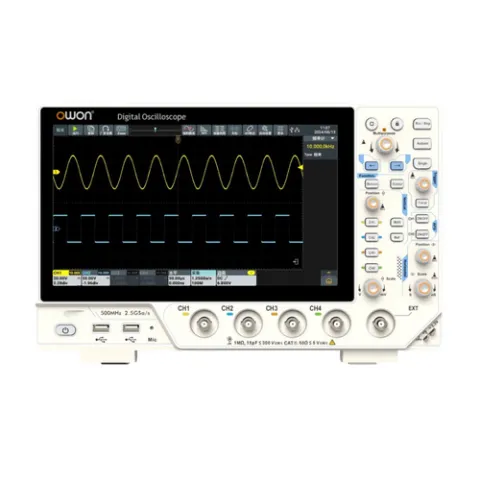

Owon ADS3354 ADS3000 Series 4th-Generation Multifunction Digital Oscilloscope 350MHz 2.5G 4+1 Channels 100M

Low noise, high sensitivity and accurate small signal measurements

Standard vertical resolution from 500uV/div to 10V/div.

Deep storage balances overall view and details

The new standard 100Mpts storage depth allows you to capture longer signal durations and zoom in on details, balancing overall view and details.

Capture anomalies and grasp every detail

In high-speed mode, the oscilloscope's waveform refresh rate reaches up to 500,000wfms/s, ensuring clear capture of signal changes.

256 levels of grayscale display, color afterglow leaves long traces

Assists in observing the signal trends over time, especially when monitoring fast changes or transient phenomena.

Features:

• Superior Performance
  • Based on the OWON X-Vision II advanced architecture: lower noise, higher storage, faster refresh.
  • 100M storage depth, up to 500,000wfms/s waveform refresh rate, ensuring clear signal capture.
  • Vertical accuracy is 500μV/div-10 V/div, and time base range is 500ps/div-1000s/div.
  • 1M- point FFT analysis ensures accurate frequency component display.
• Android Based, Extensive Expandability
  • Built-in microphone and speaker, with support for external devices like mouse and keyboard, greatly enhancing efficiency.
  • Enhanced file management for easier viewing, editing, and exporting.
  • Optional wireless module (Wi-Fi/Bluetooth) supports FTP, network printers, mobile hotspots, and more.
• Comprehensive Features

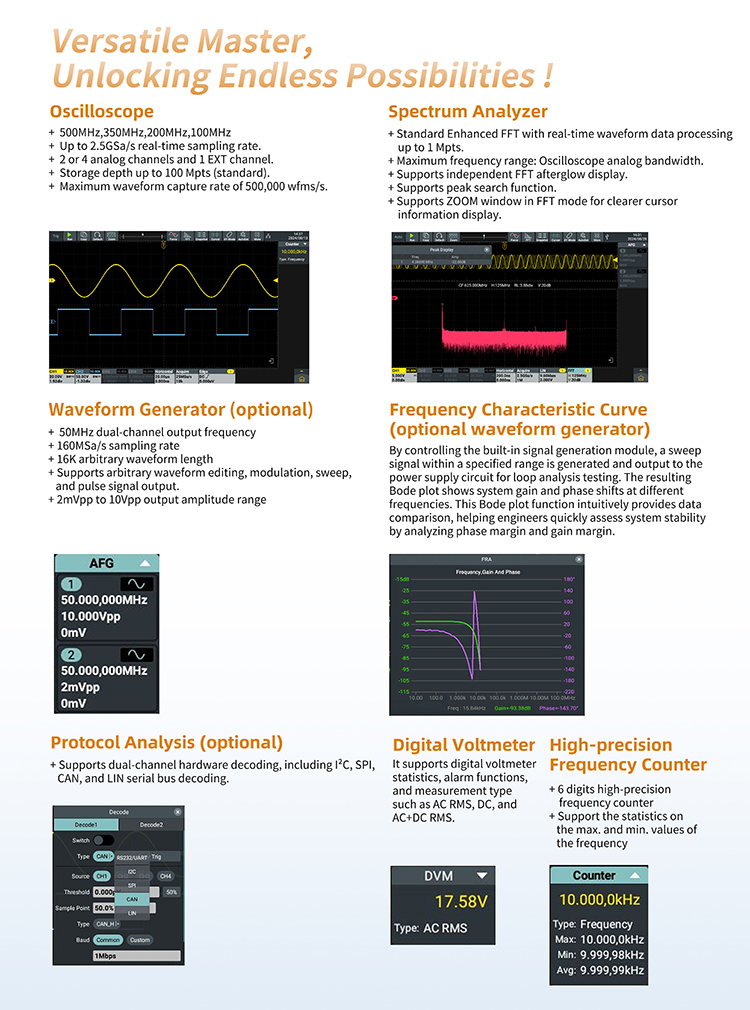

  • Integrates oscilloscope, dual-channel 50MHz AFG (optional), frequency counter, voltmeter, FFT spectrum analyzer and protocol analyzer.

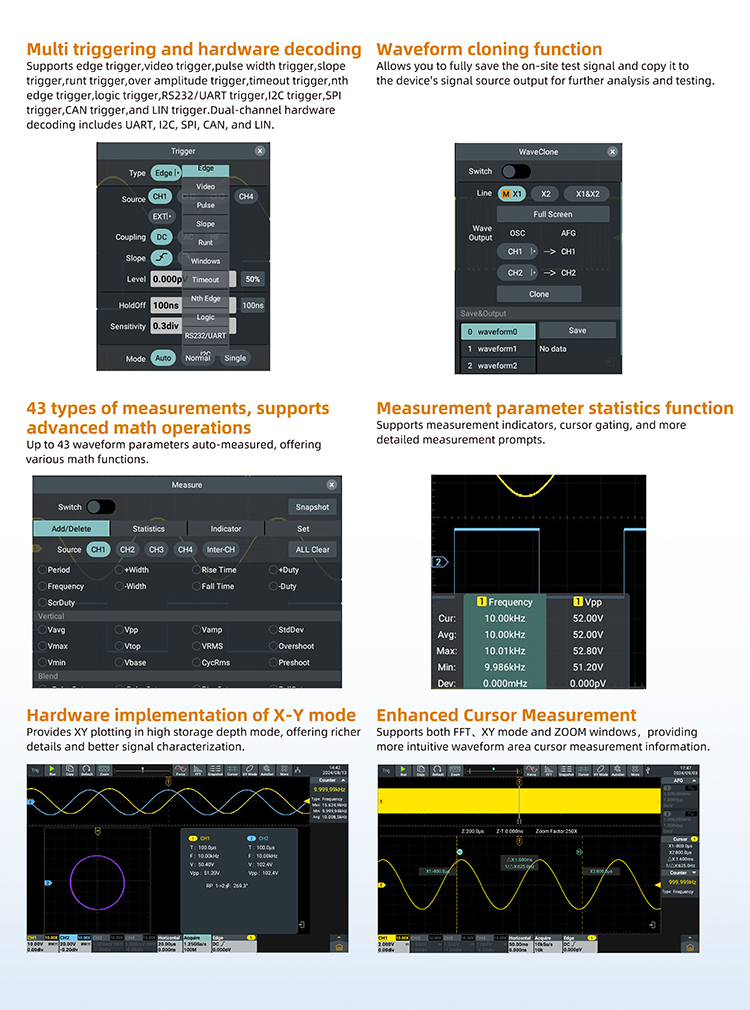

  • Multi triggering: edge video, pulse width, slope, under amplitude, over amplitude, timeout, Nth edge, logic, and RS232/UART, 12C, SPI, CAN, LIN;
  • Waveform cloning and Bode plot functions (AFG models).
  • Enhanced FFT and ZOOM features provide clearer waveform display and cursor information.
  • Convenient measurement statistics, with measurement indicators, cursor gating, and more measurement prompts.
• Human-machine Interaction and Design

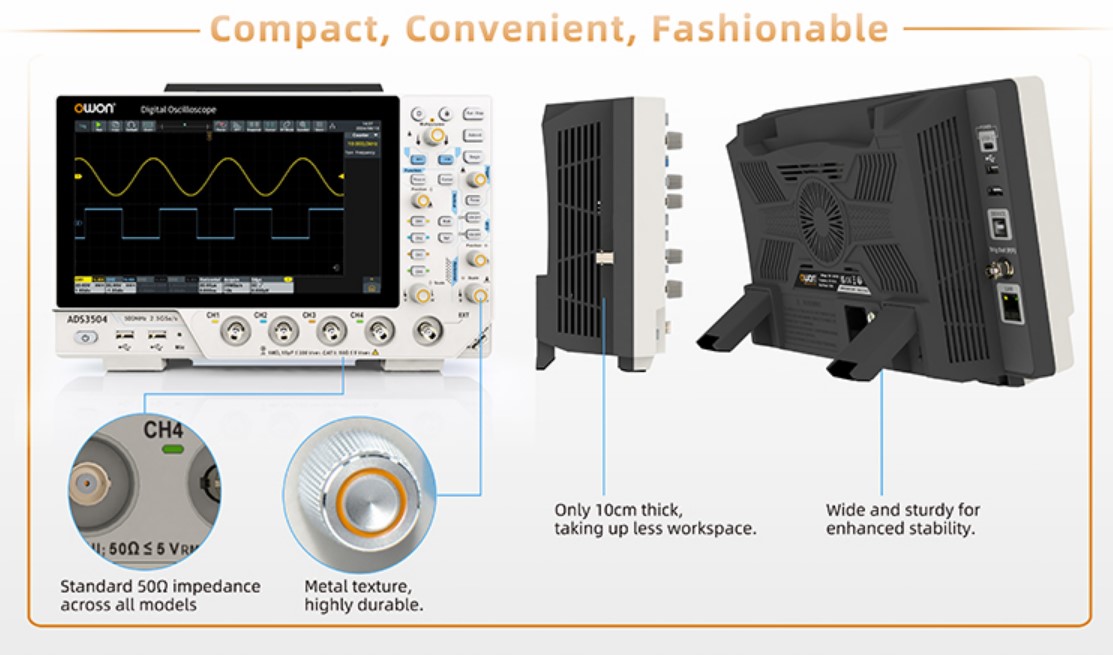

  • Ultra-thin design at just 10 cm, saving valuable workspace.
  • 10.1-inch touchscreen with multi-touch support for an enhanced interactive experience.
  • Multi-touch gestures, and customizable shortcuts for easier use.

Package includes:

• ADS3354 Multifunction Digital Oscilloscope
• Power Cord
• Quick Guide
• USB Cable
• Probe
• Probe Adjust
