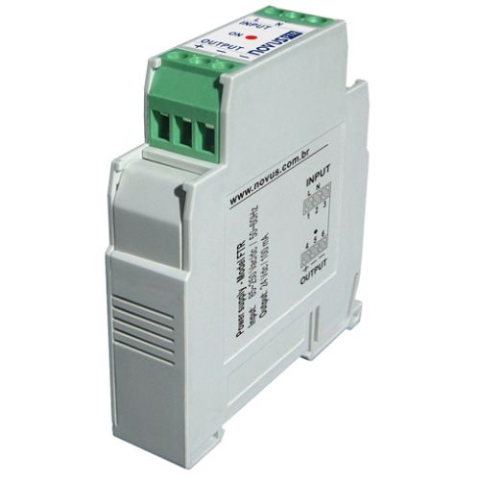

NOVUS 8818040031 FTR DIN Rail Power Supply 85~250 Vac / 24 Vdc 3 W

The FTR power supply is a switching mode power supply to be connected directly to the line proviiding na isolated output. It is suitable for powering instruments such as 4-20 mA field transmitters.

The FTR power supply is designed for DIN rail mounting, inside electrical panel. Avoid excessive vibration, humidity, temperature and electromagnetical interference.

Features:

• Input Voltage (INPUT): 100~240 Vac/dc / 50~60 Hz
• Output Voltage (OUTPUT): 24 Vdc, ± 2 %
• Output Power: 3 W
• Input / Output isolation: 600 V
• Protection: IP40
• Operating environment: 0 to 55 °C
• Humidity: 20 to 85 % RH, non-condensing
• Installation: TS32 and TS35 DIN Rail
• Connection wire cross section: 0.14 - 1.5 mm²
• Screw tightening torque: 0.8 Nm / 7.0 lb-in
• Enclosure: ABS (60%) + PC (40%) / UL94, V-0
• Short-circuit protection
• Indoor use
