NOVUS 8813002011 LogBox-AA-64k-IP67 Data Logger IP67, 2 Analog Input

LogBox-AA is an electronic data logger with two input analog channels. Input data is stored in the logger internal memory, for later download to a PC for visualization and analysis in the form of tables or graphs. The data is easily exported to spreadsheets.

The NXperience is the software used to configure the logger, download and visualize data. The logger configuration allows defining the logger operation mode, including programming the start/stop time of data acquisition. Other parameters such as signal input type, logging interval, etc, are easily selected through the NXperience software.

The LogBox-AA also provides a signal for commanding an external power supply (battery) of a device connected to the logger. This feature allows that external devices, such as a transmitter, be powered only during the measurement sample time, thus extending the autonomy of these external batteries.

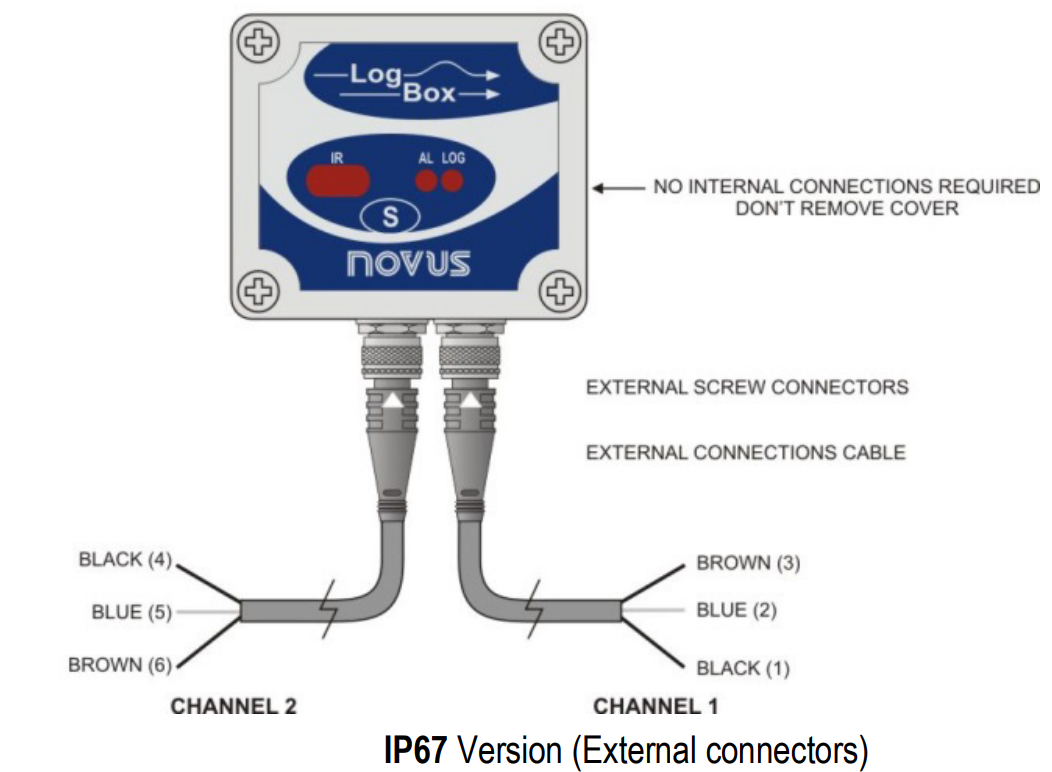

In the IP67 model, the connections are external. As shown in Figure 11, two connectors provide external access to the input channels. Cables compatible with these connectors are included with the logger.

Note: You should remove the logger cover only when it is necessary to change the battery. On this occasion, the cover must be put back properly, ensuring the protection degree of this model: IP67 − Fully protected against the entry of dust and against immersion in water, according to NBR-6146 standard.

Includes:

• Manual
• One LogBox-AA data logger
• Two external connection cables
