NOVUS 8812190950 Human-Machine Interface for FieldLogger

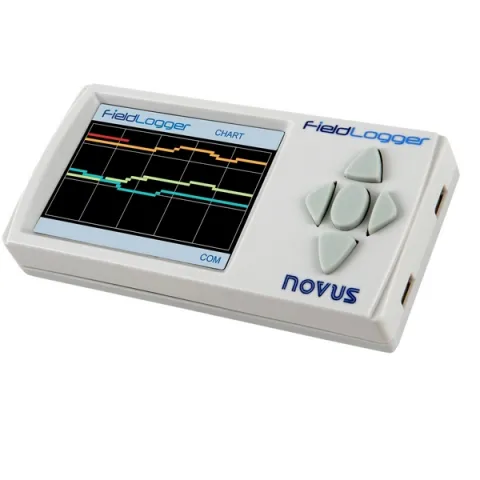

The HMI (Human-Machine Interface) is available as an accessory to the FieldLogger. Several features are implemented in this device, such as enabled channels monitoring, viewing these channels in chart mode, alarms monitoring, status checking and configuration of some basic FieldLogger operation parameters and also viewing the device data download progress when using a USB flash drive.

The HMI is attached to the FieldLogger through a DB9 connector located under its cover. Check installation details in the "Connections and Installation" section in the FieldLogger manual. It can be attached or detached even with FieldLogger energized.
Both power and serial communication go through the DB9 connector, so it is the only necessary connection. There is also the possibility of using the HMI remotely, attached to the FieldLogger through an extension cable. As the communication between HMI and FieldLogger is done through RS485 using a baud rate of 115200 bps, it is possible to use the HMI up to 850 meters far from the FieldLogger.

NOTE:

• For the correct HMI operation, FieldLogger must have software version 1.01 or higher.
• The display used in the HMI is not touch-sensitive. All navigation between screens must be done only by the keypad. Please, avoid touching the HMI display.
