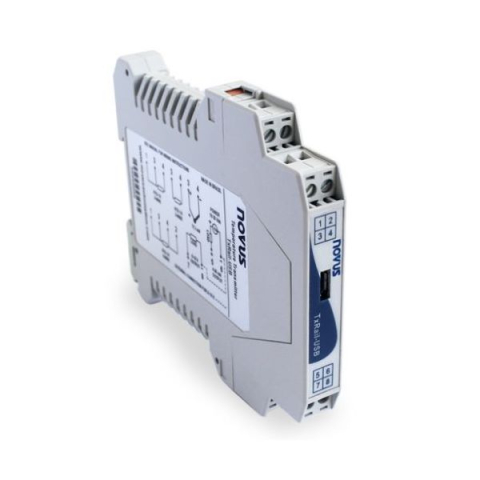

NOVUS 8806037306 TxRail-USB DIN Rail Temperature Transmitter 4-20mA and 0-10Vdc Out

TxRail-USB is a USB configurable DIN rail mount temperature transmitter. It allows selection and configuration of input type, measurement range, output type and calibration. Its output can be set to either loop powered 4-20mAor 0-10V. Highly accurate and user-friendly, the TxRail-USB performs well from simple to sophisticated measurement applications

Features:

• Universal input accepts Thermocouples J, K, T, E, N, R, S, B, Pt100, Pt1000, NTC, 0-50 mV and 0-100 mV
• Configurable measurement range
• Sensor break detection according to NAMUR Ne43 recommendations
• Internal cold junction compensation
• Pt100/Pt1000 connection for 2, 3 and 4 wires
• Accuracy ( at 25 °C): typical 0,1% of span for thermocouple, mV, Pt100 and Pt1000
• Temperature effect <± 0,16% at 25° C
• Configurable output to 4-20 mA loop powered or 0-10 V
• Output Linearized according with measured temperature
• Output resolution: 4-20 mA output: 2 µA / 0-10 V output: 2,5 mV
• Power supply: 10 to 35 Vdc (4-20 mA output) / 12 to 35 Vdc (0-10 Vdc output)
• Operating temperature: -40 to 85 °C
• Free Windows® configuration software
• USB micro-B port allows direct PC connection for configuration. USB Class CDC
• Dimensions: 99,5 x 114 x 12,5 mm

For more information, please see Technical Specification
