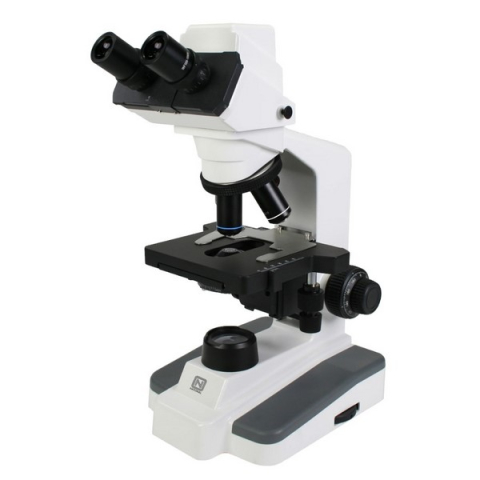

National Optical DC5-169-P DC Series Trinocular LED Microscope with 5.0MP Camera 4x 10x 40xR 100xR Plan Objectives LED 1.25 N.A. Abbe

Superior in design and in performance, the DC5-169 Series features built-in 5.0MP digital camera and incorporates a wide range of features designed for university and laboratory use. Superb optical clarity and reliable mechanical engineering assure years of top performance. This unit is supplied with plan lenses which deliver excellent clarity and 100% flatness of field.

Optical System

• Widefield 10x /18mm eyepiece
• 30° inclined trinocular viewing head rotates 360° for easy sharing by more than one student
• DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) plan objectives. All are parfocalled, parcentered and color-coded
• Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives, features textured rubber knurling for easy grip. Mounted in reverse position to facilitate ease in changing slides

Illumination

• 3W LED variable illumination
• 110V-220V external auto-switching power supply
• CE certified

Focusing

• Coaxial coarse and fine focusing controls
• Coarse has tension adjustment
• Fine is graduated

Stage

• Large 140mm x 135mm rackless mechanical stage
• Built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls, 70mm (x) by 50mm (y) movement with graduations of 0.1mm
• 1.25 N.A. Abbe condenser has rack & pinion focusing and iris diaphragm

Camera Specifications

• Sensor Type: CMOS
• 5.0MP
• Includes calibration slide and software

Frame

• Rugged cast aluminum, gray enamel finish

Packing

• Head and frame in separate molded styrofoam container with vinyl dustcover
