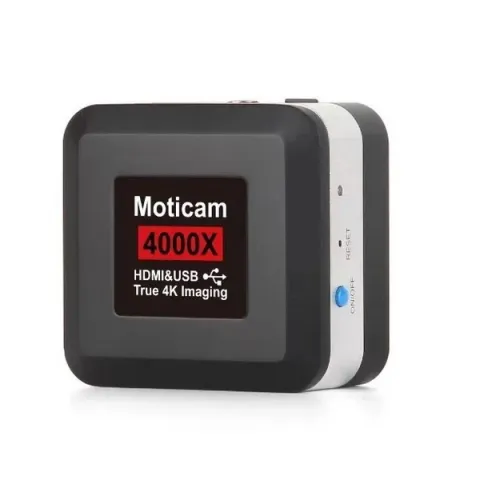

National Optical D-Moticam 4000X MOTICAM Series Multiport 4K Microscope Camera 4000X

The Moticam 4000X is a camera that was designed for ease of use and the ability to output fast live images at 4K(3840x2160) pixels in full HD.

Unlike other cameras, the Moticam 4000X can be connected to a computer or through HDMI. Simply plug the camera through the HDMI port and display images with the use of the onboard software and a USB mouse through an HDMI monitor, or connect your camera through USB to a Windows, Mac or Linux computer.

By having an integrated SD card slot, not only does saving images not require a computer, but it also allows flexibility to save portable data.

Specifications

• Sensor Type: CMOS
• Sensor Size: 1/2.8"
• Light Sensitive Area: Diagonal 6.4mm
• Capture Resolution: 8MP (3864x2228 pixels)
• Pixel Size: 1.45x1.45um
• Scan Mode: Progressive
• Shutter Type: Rolling Shutter
• USB 2.0: A type female chassis, host, mouse support
• USB 3.0: A type female chassis connector, device, UVC
• HDMI: 3840x2160 at30HZ
• Network Port: 100Mbps RJ45 (no indicator)
• SD Card: SD2.0, SD3.0 support (SDHC, SDXC card support)
• Power Button: Flick switch
• WiFi Reset Button: Long press to reset
• Software: MotiConnect for Android/iOS; Motic Images Plus 3.1 for Windows/Mac OS

Package includes:

• 12V Power Adapter
• CS Ring
• Motic 4-dot calibration slide
• Dust Cap
• Manual
• 12mm lens
• Adapter φ30/φ38
• Macro Tube
• Macro Calibration card

For more information, please see Data Sheet
