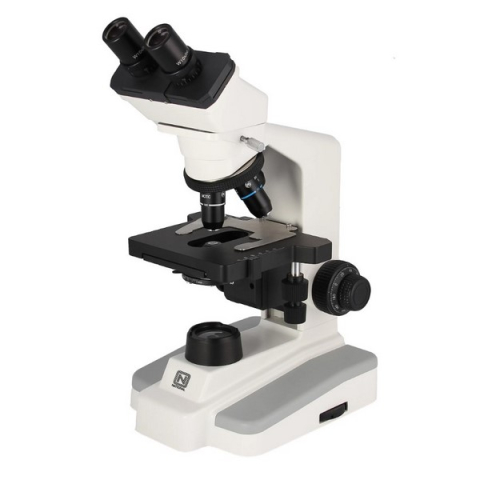

National Optical 168-SP 167 Series Binocular Corded LED Microscope Semi-Plan 4X 10X 40XR-100XR 1.25 Abbe Condenser Stage Mechanical

Superior in design and in performance, the 167 Series incorporates a wide range of features designed for university and laboratory use. Superb optical clarity and reliable mechanical engineering assure years of top performance. This unit is supplied with semi-plan lenses which deliver excellent clarity and 80-85% flatness of field.

Optical System

• Widefield 10x /18mm eyepiece
• 45° inclined binocular viewing head rotates 360° for easy sharing by more than one student
• DIN standard 4x (0.10 N.A.), 10x (0.25 N.A.), 40xR (0.65 N.A.) and 100xR oil immersion (1.25 N.A.) semi-plan objectives. All are parfocalled, parcentered and color-coded
• Quad objective turret is ball-bearing mounted for smooth, precise positioning of objectives, features textured rubber knurling for easy grip. Mounted in reverse position to facilitate ease in changing slides.

Illumination

• 3W LED variable illumination
• 110V-220V external auto-switching power supply
• CE certified

Focusing

• Coaxial coarse and fine focusing controls
• Coarse has tension adjustment
• Fine is graduated

Stage

• Large 140mm x 135mm rackless mechanical stage
• Built-in, low profile, ball-bearing mounted mechanical specimen holder with low-position coaxial controls, 70mm (x) by 50mm (y) movement with graduations of 0.1mm
• 1.25 N.A. Abbe condenser has rack & pinion focusing and iris diaphragm

Frame

• Rugged cast aluminum, gray enamel finish
• Base dimensions: 185mm x 235mm (7-1/4 in. x 9-1/4 in.)
• Height: 420mm (16-1/2 in.). Net wt. 6.3 kgs (13.9 lbs)

Packing

• Molded styrofoam container with vinyl dustcover.
