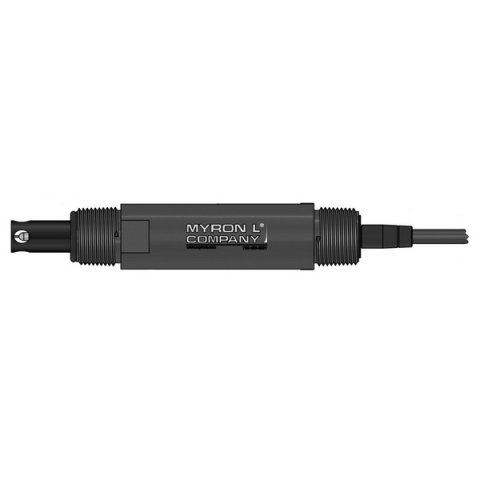

Myron L O94 3/4" Preamplified ORP Sensor for 900 Series Multi-Parameter Monitor/Controllers w/ Pellon Junction

The Myron L Company O94 ORP sensors are designed to operate exclusively with the Myron L Company 900 Series Multi-Parameter Monitor /Controller. Each sensor has a built-in preamplifier that guarantees accurate measurements by eliminating ground-loop problems and reducing the effects of cable capacitance and impedance. Sensor bodies are made from durable Ryton PPS (polyphenylene sulfide). Ryton combines excellent temperature tolerance with superb resistance to solvents and corrosive chemicals and has an inherent UL94 V-0 flammability rating without flame retardant additives. A double-ended, 3/4" NPT fitting makes these sensors easy to install in-line. Double-Junction Reference design means these sensors can withstand poisoning in more demanding applications. The external junction is Pellon for applications requiring faster response time. Standard cable length is 10ft.(3.05m) terminated with 6, tinned leads (5 signal; 1 shield). A separate 5-pin terminal block is included.

Advantages:

• Superb Response Time.
• Double-Junction Reference Design.
• ± 2000 mV Range.
• Double-ended NPT for simple in-line or submersion installations, independent of mounting orientation.

For more information, please see Data Sheet
