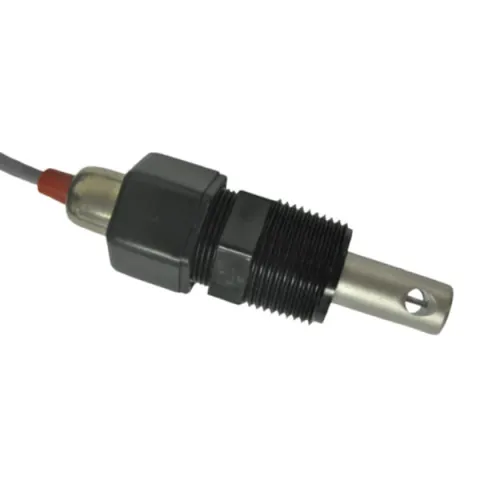

Myron L CS951LS-25 Conductivity/TDS Sensor for 900 Series Monitor/Controllers, 3/4" NPT, Long Style, 0-20000 uS/ppm, 25' Cable

The Myron L® Company CS951 and CS951LS Conductivity sensors are designed to operate in demanding environments. They are an excellent sensor for a wide variety of water quality applications.

Process connections are made via a 3/4" NPT fitting. This fitting may be installed into a line or tank, or may be reversed so that the sensor can be inserted into a standpipe for use in submersion applications. The standard versions have a 316 stainless steel body and fittings made from temperature resistant and chemically non-reactive polypropylene.

All CS951 and CS951LS sensors are completely encapsulated and feature a dual O-ring seal design that ensures long life under demanding conditions. The outer O-ring bears the brunt of environmental attacks allowing the inner O-ring to maintain a reliable seal.

The built-in PT1000 RTD makes accurate and quick temperature measurements for superior temperature compensation. Standard cable length is 10ft. (3.05 m) terminated with 5, tinned leads (4 signal; 1 shield; separate 5-pin terminal block included).

Advantages:

• Low Cost / High Performance
• Temperature and Chemically Resistant Construction
• Easy to Install
• Built-in Temperature Sensor measures solution temperature directly.

For more information, please see Data Sheet
