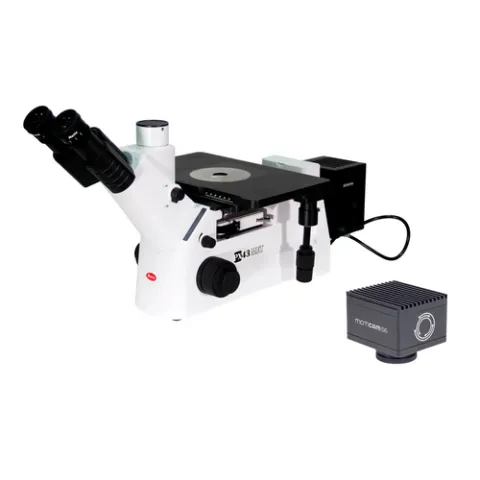

Motic PA43-MT-BD-S6 PX43MET Inverted Metallurgical Microscope UC-WF 10X/FN Eyepieces 115/230V with Moticam S6 sCMOS Digital Microscope Camera 6MP

PX43MET microscope

Motic's PX43MET is a professional Inverted Metallurgical microscope designed to inspect polished cross-sections as well as larger, bulkier materials samples. The microscope is a best fit for automotive, machinery, and metal fabrication industries and similar fields.

This full featured microscope is capable of:

• DIC for better depth imaging
• Polarization
• Brightfield and Darkfield contrast methods
• Advanced measurement, image processing and documentation through a Moticam and the Motic Analysis Software.

Infinity Plan Semi-Apochromatic Bright and Dark Field Objectives

The PX43MET makes use of a CCIS infinity optical system to provide you with brightfield, darkfield, and inverted microscopy. Along with its ultra-long working distance objective lens, PX43MET offers multi-method, flexible metallographic examination. The high transmittance objective lenses are made with multi-layer coating, which greatly improves contrast and displays an observed image with high brightness and clarity.

Mechanical moving stage

The PX43MET microscope's unique three-layer stage and movable handle design make it more convenient for you to move specimens, which greatly improves observation efficiency and comfort of use. The 320mmx194mm large-area stage allows you to choose a wider range of specimens. The hard-coated surface is anti-corrosive and wear resistant. The stage stroke is 50X50mm to ensure sufficient operating distance for the user.

Eyepieces

With the Motic infinity chromatic aberration corrected CCIS optical system, the PX43MET shows you a flat 22mm field of view. The high eye point eyepieces ensure crisp image color and clear image quality, while reducing visual fatigue. Diopter adjustment allows users to obtain the best viewing effect for their eyes.

Nosepiece

Motic's newly designed quintuple nosepiece ensures precise positioning when changing the objective lenses. The inclined position of the objectives allows you to easily read the objective info while working, and allows for ergonomic access to change magnification.

Illumination

The PX43MET supports brightfield, darkfield and polarized light observation. In the standard configuration, the PX43MET uses a 12V /100W halogen lamp, which provides ample illumination intensity for its full set of objective lenses. The built-in power supply also saves you valuable work space. The PX43MET also introduces a new Motic innovation, the "ECO Smart Sense".

The infrared sensor built into the stand can detect whether or not there is a user working in front of the microscope. If the user leaves the PX43MET for over 15 minutes, the microscope will automatically switch off; and when the user returns, the sensor will automatically turn on the scope. The PX43MET microscope fits smartly and seamlessly into your daily routine. The unique antiglare design when switching from darkfield to brightfield ensures that the instantaneous illumination brightness will not be too strong; and the brightness gradually increases, giving users enough adjustment time to protect their eyes from stray light.

The halogen and LED lighting modules of the PX43MET can be directly replaced, which is a patented design of Motic. LED lighting has low heat generation and is suitable for observing heatsensitive samples.

Polarized light and Differential Interference Contrast (DIC)

The PX43MET meets the needs of your polarized light examinations. Simply insert the polarizer and analyzer into the optical path to use. Differential Interference Contrast (DIC) observation provides high-quality images for samples with large depth differences.

Moticam S6 camera

A 6MP resolution of Moticam S6 is dedicated to large-sized monitors and printing purposes. Presentations to a greater public through video projector, but also reports in hardcopy form are performed with ease of handling. Utilize the advanced sensor technology of Motics S Series cameras.

The right choice for challenging tasks in professional fields. The Moticam S Series offers smooth navigation, high color fidelity, and crisp images designed by German engineers. Time efficiency in its best resolution from HD up to QHD+.

The Hi-Res Experts

Moticam S6 is focused on resolution, ready to reveal the tiniest detail of your sample on a large screen. Documentation in printed format is no problem at all. The data volume created by the 6MP sensors should be handled by a computer with USB 3.1 Gen.1 port for faster transmission.

Package includes:

• PX43MET microscope
• Moticam S6 camera
• CS ring adaptor
• USB 3.1 cable
• Motic 4-dot calibration slide
• Motic Images Plus 3.0 for Windows/OSX/Linux
