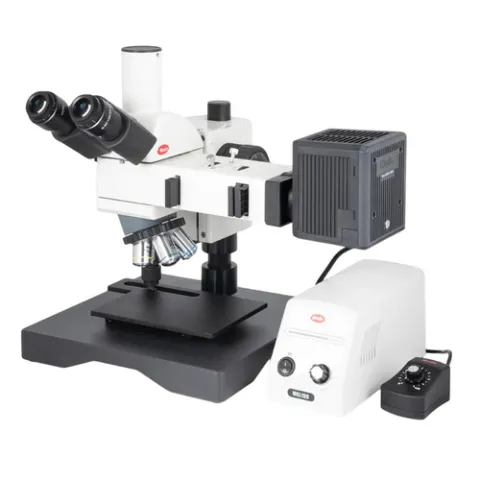

Motic 1100100403591 BA310Met-H Trinocular Head Microscope Focusing Stroke 30mm 100-240V (CE)

Trinocular microscope setup for bulky samples from material sciences. The BA310 MET-H offers plenty of handing space due to a flexible focusing device. The LM Plan Achromatic objectives from Motic's CCIS® Infinity system evaluate reflective, flat surfaces of large workpieces from industrial quality control and technical schools.

Great flexibility for all sample sizes

BA310MET-H the Epi-Illumination including optics is combined with a focusing block mounted on a vertical pole. Thus an extended focusing range for the examination of bulky samples is achieved.

New LM Plan Achromats for incident light

A new generation of LM Plan-Achromatic objectives dedicated to non-covered specimen. Made of high quality glass, these LWD objectives follow the successful Motic CCIS® optical concept and ensure improved contrast and image quality by multi-layer coating.

Flexibility for compound materials

The Epi-Illuminator of the BA310MET models is based on a 50W Halogen light source with external power supply. With an adjustable field and aperture diaphragm, homogenous illumination and improved contrast are guaranteed. The simple polarization set enables a useful "POL contrast" and helps to minimize reflections especially in low power objectives.

Motic's new BA310MET series presents an affordable and powerful microscope line for incident light applications in all material sciences. Industrial quality control of opaque samples can be performed as well as teaching in educational environments of engineering and material professions, where affordability and ease of use are key demands. The BA310MET-H includes a more flexible focusing device, dedicated to larger samples with only little limitation in size.

Motic's new LM Plan-Achromatic objectives with Long-Working Distance for incident light provide optimal image contrast for reflective, non-covered specimen. Together with a fully corrected tube lens an intermediate image without colored fringes is created. In all models the Epi-Illuminator offers a powerful 50W Halogen light source. The built-in field diaphragm and aperture diaphragm help to optimize image quality by reducing stray light and thus increasing contrast. As a standard, an anti-fungus treatment has been applied to the complete microscope to ensure a long lifetime in humid environments.

Package includes:

• Microscope
• Dust cover
• Power cord
• Allen key
