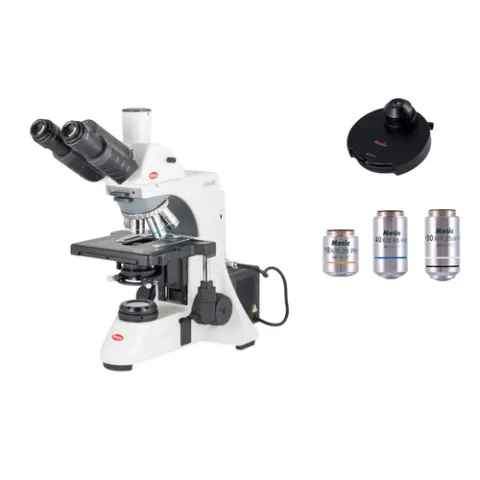

Motic 1100100403242 BA410E Premium Phase Lab Package Trinocular Sextuple 50W Microscope with Turret Condenser

The BA410E Phase package comes with a turret condenser and other phase equipment allowing users to view their samples using phase contrast.

The BA410E is Motic's flagship model, and it displays the highest level of optical performance. With a complete set of EC-H Plan Apochromatic lenses, it allows maximum clarity in color reproduction and resolution. The BA410E also allows a profound diagnosis for those in pathology, hematology, and cytology who require the best color fidelity. Increased numerical apertures provide an expanded resolution power for a more detailed specimen evaluation.

New optics for multiple demands

The BA410E optics starts with the standard EC-H Plan Achromat series from 2X to 100X magnification, The respective Phase contrast objectives (positive & negative version) are derived from these Brightfield lenses. The BA410E series offers two more sets of high-performance objectives. The Plan Fluors have got a perfect balance between contrast and transmission, while the Plan Apochromatic lenses are driven to a maximum resolution power and color fidelity for histology and pathology, The N-WF eyepieces come with a standard 10X/22 mm Field of View and provide a diopter adjustment (+/-5dpt) for both eyes, ready for the use of optional reticles.

Flexibility in daily routine work

Motic's BA410E is designed for a flexible operation in daily work. The rackless stage with ceramic insert gives a long-time stability to sample positioning, enabling a fast scanning. The standard eyepiece tubes feature a 30° viewing angle for maximum comfort, and the interpupillary distance of 48-75mm can easily be adjusted, following individual conditions. A selection of trinocular tubes offer multiple light split options for digital camera systems and the presentation of microscopic images to a larger lab group.

A clever and powerful light management

The BA410E microscope features a 50W/100W Halogen illumination system in a Full Koehler setup. The 50W Halogen stand works fine with light consuming contrast methods (DF, POL), while the 100W stand is recommended for multi-viewing setups. The light memory function of the BA410E is based on an encoded 6-fold nosepiece which memorizes the light intensity setting for each nosepiece position. A built-in IR-sensor activates the Auto ON-OFF function in case the microscope is left. A high-quality condenser with NA 1.25 and aperture diaphragm is implemented for visualization of weakly or non-stained samples.

MOTIC'S BA line flagship

The BA410E is the flagship of Motic's BA microscope line. The large and flexible stand concept allows to upgrade the microscope to a variability of powerful application solutions, Phase contrast (positive and negative version), Polarization contrast with compensator RED I. Order usage and Darkfield is an easy task, Mult-Viewing devices up to a S-head solution can be added to teach in the traditional way in histology and pathology. An upgrade with Fluorescence is possible by implementing a 4-position cube slider and a 100W HBO lamp house. The BA410E offers maximum flexibility within the BA line: a true leader in performance.

Package includes:

• Microscope
• Turret condenser and other phase equipment
