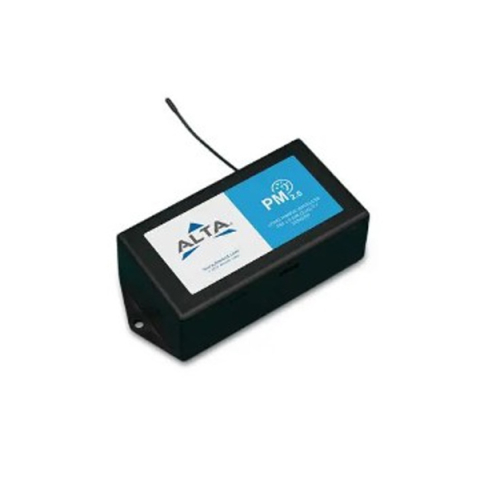

Monnit MNS2-9-W2-AQ-P25A-LPO ALTA Wireless PM2.5 Particulate Mater Meter - Line Power Only (900 MHz)

The ALTA Wireless - Air Quality Sensor measures particulate matter (PM) concentrations in the air.

The ALTA Wireless Air Quality Sensor measures the particulate matter (PM) based on a user-configurable time interval or Heartbeat. The sensor works by turning on a small fan at the beginning of a measurement cycle to bring in a volume of ambient air and measure the PM content of that sample. The sensor measures PM content using a laser that scatters based on the number and size of particles suspended in the air. This measurement is then sent to the gateway, making the data available in iMonnit, or another approved data service.

Features

• Measurement Sensitivity: PM1: 0.3 to 1.0 um, PM2.5: 1.0 to 2.5 um, PM10: 2.5 to 10 um
• Effective Range: 0 to 500ug/m^3
• Maximum Range: 0 to 500ug/m^3
• Counting Efficiency: 50% at 0.3 um, 98% at >= 0.5 um

Applications

• Building/Room Air Quality
• Pollution Sensing
• Mines and Quarries
• Cement Factories
• Construction/Demolition Sites
• Petrochemicals
• Agricultural/Waste

Includes:

• Wireless Sensor
• Mounting Hardware
• USB Cable

For more information, please see Data Sheet
