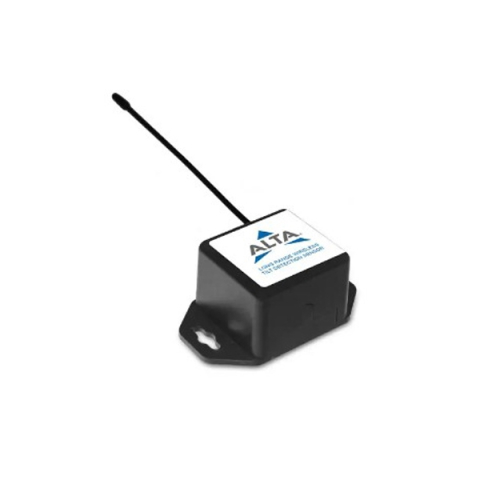

Monnit MNS2-9-W1-AC-TT ALTA Wireless Tilt Detection Sensor - Coin Cell Powered (900 MHz)

ALTA® Wireless Accelerometer - Tilt Detection Sensor is a micro-electromechanical systems (MEMS) sensor that continuously measures changes in tilt on a single axis of rotation.

Features

• Two modes of operation
• Up/Down detection mode: Up, down, stuck
• Delta detection mode: Report on change
• Axis of rotation is user-selectable
• Measurement Range: -179.9° to +180.0°
• Resolution: 0.01°
• Accuracy: +/- 0.5°
• Configurable thresholds for critical condition monitoring

The ALTA Wireless Accelerometer - Tilt Detect Sensor continuously monitors a single axis of rotation specified by the user. The sensor has two modes of operation. In Up/Down mode the sensor is triggered when its pitch changes between user configurable angles defined as Up, Down, and Stuck. In Delta mode the sensor is triggered when the absolute difference between the current sensor angle and the last reported angle exceeds a user-defined Delta Value.

Applications

• Inclination monitoring
• Bay doors
• Loading gates
• Overhead doors

Includes:

• Wireless Sensor
• CR2032 - Coin Cell Battery
• Mounting Hardware

For more information, please see Data Sheet
