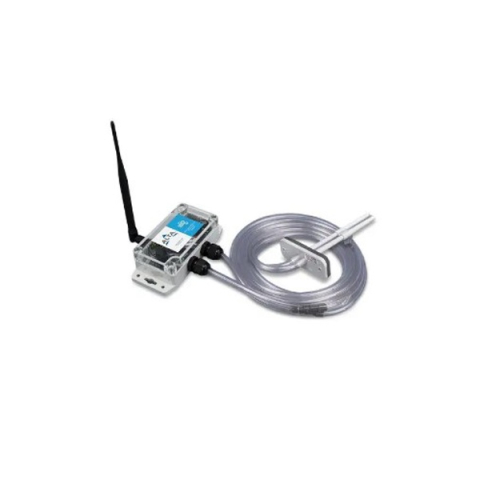

Monnit MNS2-9-IN-PS-AV ALTA Industrial Wireless Air Velocity Sensor (900 MHz)

ALTA® Wireless Air Velocity Sensors measure the difference in pressure between two ports to calculate the air speed flowing in a system and temperature.

The ALTA Wireless Air Velocity Sensor measures the rate at which air flows through a system based on a user-configurable time interval or Heartbeat. The sensor measures the air pressure difference between two ports and temperature. Combining this data with and altitude setting, the sensor determines at what rate air is flowing through the system. This measurement is then sent to the gateway, making the data available in iMonnit or another approved data service.

Features

• Measurement Range: -50 m/s to 50 m/s
• Accuracy: +/- 0.5 m/s
• Resolution: 0.1 m/s
• Automatic temperature compensation
• Altitude compensated available (manually set)
• Configurable thresholds for critical condition monitoring

Applications

• Building/Room Pressure
• Air Flow
• Variable Air Volume Filter Status
• Duct Pressure
• Clean Rooms
• Hospitals
• Fume Hoods
• Computer Rooms

Includes:

• Wireless Sensor
• Mounting Hardware
• 3V Industrial Battery (Pre-Installed)
• SMA Antenna

For more information, please see Data Sheet
