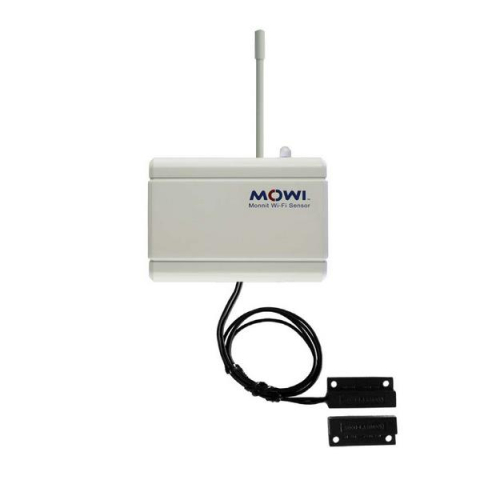

Monnit MNS-2-WF-OC-ST Wi-Fi - Open/Closed Sensor

The Monnit Wi-Fi Open/Closed Sensor provides information on the status of doors, windows, cabinets, etc. Know if a building or specific area is being accessed when it should not be, or if a door or window has been left open. An integrated 802.11 b/g radio allows the sensor to work with any existing Wi-Fi network. Monnit Wi-Fi sensors can be easily programmed with your Wi-Fi network's WEP or WPA(2) security via the free MoWi Setup Utility (PC application) and a MoWi USB programming cable.

Features

• Detects when a door or window is accessed.
• Magnet is included.
• Logs data if Wi-Fi network is disrupted.
• Free iMonnit basic online wireless sensor monitoring and notification system to configure sensors, view data and set alerts via SMS text and email.

Principle of Operation

The Monnit Wi-Fi Open/Closed Sensor uses a wired reed switch to detect the presence or removal of a magnetic source. When the sensor detects that the magnet is removed or returned it sends the information to the iMonnit Online Sensor Monitoring and Notification System. The data is stored in the online system and can be reviewed and exported as a data sheet or graph. Notifications can be set up through the online system to alert the user when a magnetic source is present or not with the ability to only notify within time of day parameters.

Applications

• Doors and windows.
• Cabinets and lockers.
• IT server closets.
• Freezer and cooler doors.

Includes:

• Wi-Fi Sensor
• AA Batteries
• Sensor Magnet with Mounting Flange

For more information, please see Data Sheet
