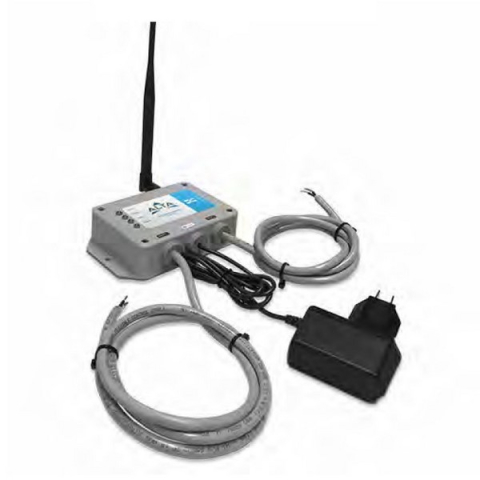

Monnit MNO2-9-CTL-10 ALTA 10 Amp Wireless Control - Commercial 10 Amp (900 MHz)

Monnit ALTA wireless control units contain two separate relay switches allowing for individual control through the iMonnit online sensors portal. The ALTA control unit relays can be switched on/off manually through the software or automatically by any wireless sensor notification assigned to a single sensor or group of sensors when a specified condition is detected.

The ALTA control unit has two separate relays that can be toggled on/off at will by either: (a) the iMonnit.com web portal; (b) any device that triggers a notification on the same network. Four LED indicators let the user know if the device is powered on, communicating with the online system and the status of each relay.

Example Applications

• Facilities / Building Operations
• Automated Systems
• Smart Buildings
• Manufacturing Processes
• Machine Control
• Lighting Control
• Sump and Water Evacuation
• Agriculture and Greenhouses

ALTA Wireless Control Features

• Wireless range of 1,000+ feet through 12-14 walls
• 900 MHz Frequency Hopping Spread Spectrum (FHSS) 868 and 433 MHz Frequency Agile
• Improved interference immunity
• Encrypt-RF™ Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• 16,000 sensor message memory
• Over the air updates (future proof)
• Allows for automated control.
• 10-amp unit
• Two separate relays per unit.
• Can be triggered by any Monnit wireless sensor manually through the iMonnit software.
• AC powered, always on for immediate response from paired sensors.

Includes:

• Wireless Control Unit
• High Gain Antenna
• AC Power Supply

For more information, please see Data Sheet
