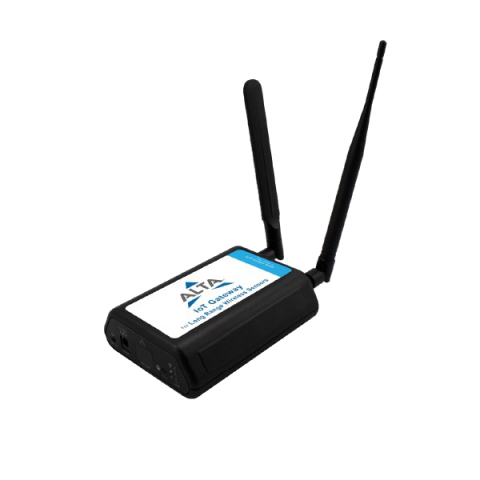

Monnit MNG3-9-CME-CCE-ND ALTA XL IoT Gateway 900MHz 1W Cellular Gateway Ethernet Capable 60hr Battery Backup

The ALTA XL® IoT Gateway features a powerful wireless transceiver with up to 1 Watt transmission strength, an amplified receiver, and 4G LTE CAT-M1/NB2 cellular technology to backhaul ALTA® Wireless Sensor data. The ALTA XL IoT Gateway can send and receive data communications with ALTA Sensors at 2,000+ feet through 18+ walls in commercial building environments.

You only need a power source and the iMonnit® Cloud Platform to monitor virtually any environment and equipment using Monnit's industry-leading wireless IoT devices. The ALTA XL® IoT Gateway communicates with ALTA Sensors and iMonnit to deliver data and send alerts about various machine, equipment, or area conditions.

Example Applications

• Remote Location and Asset Monitoring
• Shipping and Transportation
• Agricultural Monitoring
• Vacant Property Management
• Vacation Home Property Management
• Construction Site Monitoring
• Data Center Monitoring

ALTA XL® IoT Gateway Features

• 4G LTE CAT-M1/NB2 cellular technology
• Wireless range of 2,000+ feet through 18+ walls
• Frequency-Hopping Spread Spectrum (FHSS)
• Best-in-class interference immunity
• Encrypt-RF® Security (256-bit Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• 32,000 sensor message memory
• Over-the-air (OTA) updates (future-proof)
• True plug and play, no hassles for Internet configuration setup
• No PC required for operation
• Local status LEDs with transmission and online status indicators
• Magnetic on/off power button
• AC power supply
• Up to 60-hour battery backup in the event of a power outage
• External magnetic utility switch
• Location data subscription supported (GPS/GLONASS/BeuDou/Galileo/QZSS)

Includes:

• Power Supply
• RP SMA Antenna

For more information, please see Data Sheet
