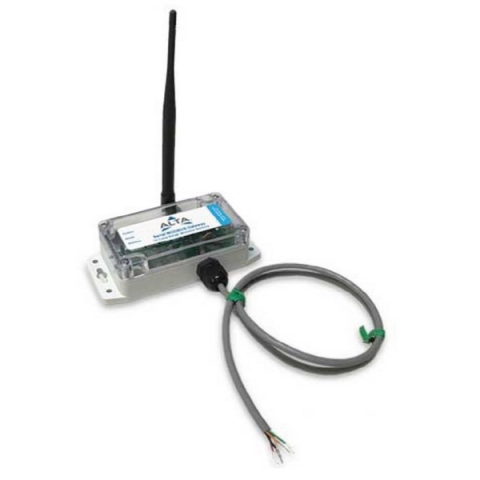

Monnit MNG2-9-SG-SMG ALTA Serial Modbus Gateway (900 MHz)

The ALTA Serial Modbus Gateway (SMG) acts as a data concentrator for Monnit's ALTA long range wireless sensor networks. This device allows you to connect up to 50 wireless sensing devices, per gateway, to your existing serial Modbus RS-232C and RS-485 sensing and control infrastructures.

Monnit has recognized the importance of using open standards like Modbus, allowing ALTA wireless sensors to be used in the majority of industrial applications. Modbus is often used to connect a supervisory computer with a remote terminal unit (RTU) in supervisory control and data acquisition (SCADA) systems. Modbus allows for communication between many (approximately 247) devices connected to the same wired network. Therefore, ALTA SMG's allows for seemingly unlimited wireless expansion to a traditional wired network.

Applications

• Process automation protocols
• Industrial control system protocols
• Building automation protocols
• Power system automation protocols
• Automatic meter reading protocols
• Automobile / Vehicle protocol buses
• In any existing Modbus system

ALTA Serial Modbus Gateway Features

• Wireless range of 1,200+ feet through 12-14 walls
• 900 MHz Frequency Hopping Spread Spectrum (FHSS), 868 and 433 MHz Frequency Agile
• Best in class interference immunity
• Encrypt-RF® Security (Diffie-Hellman Key Exchange + AES-128 CBC for sensor data messages)
• 16,000 sensor message memory
• Over the air updates (future proof)
• Communicates with Modbus RTU / ASCII Serial Protocols
• Supports RS-232C / RS-485 Interfacing
• LED Status Indicators
• NEMA 4X / IP65 Rated Enclosure
• RP SMA Antenna Connector (Antenna Included)

Includes:

• Serial Modbus Gateway
• High Gain Antenna
• RP SMA Antenna

For more information, please see Data Sheet
