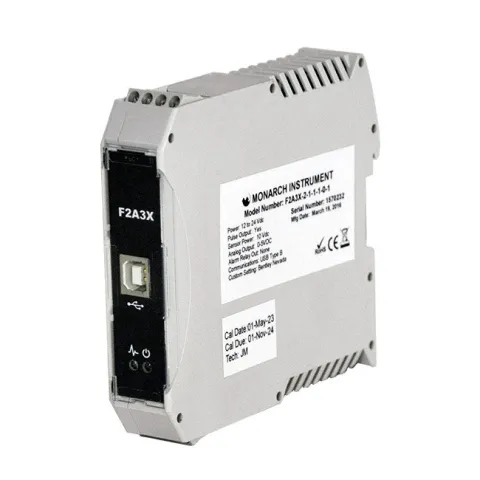

Monarch Instrument F2A3X Frequency to Analog Converter/Tachometer with NIST Traceable Certificate

The F2A3X Frequency to Analog Converter/Tachometer is a DIN rail module that converts a frequency input signal into a proportional analog voltage (0-5 Vdc) or current (4-20 mA) output. The output signal is electrically isolated from the input signal and input power source, effectively eliminating troublesome ground loops. The input signal can be supplied from a Monarch sensor (measuring RPM for example) or any source of digital signal not exceeding 12 volts. The F2A3X is completely user-programmable using the free downloadable PM Remote Software. A NIST Traceable Certificate is included.

The F2A3X Frequency to Analog Converter is a DIN rail module that converts a frequency input signal into a proportional analog voltage (0-5 Vdc) or current (4-20 mA) output. The output signal is electrically isolated from the input signal and input power source, effectively eliminating troublesome ground loops. The input signal can be supplied from a Monarch sensor (measuring RPM for example) or any source of digital signal not exceeding 12 volts. The F2A3X is completely user-programmable using the free downloadable PM Remote Software. A NIST Traceable Certificate is included.

Applications:

• Process monitoring over networks
• Tachometer signal generator
• Quality control
• R&D
• Engine performance
• Signal conditioning
• Data acquisition
• Motor or pump monitoring

Features:

• Standard DIN rail mounting
• Ethernet communications available
• 5 to 999,990 RPM range (0.083 to 150 kHz)
• Compatible with most speed sensors (TTL)
• 12 to 24 Vdc input power
• Alarm setpoint with optional relay output
• Pulse repeater output
• User-configurable
• View real-time data on PC
• 4-20 mA or 0-5 Vdc scalable output
• 10 Vdc or 5 Vdc sensor excitation
• NIST Traceable Certificate included

For more information, please see Manual
