Monarch Instrument ACT-3X Panel Tachometer/Totalizer/Ratemeter with NIST Traceable Certificate

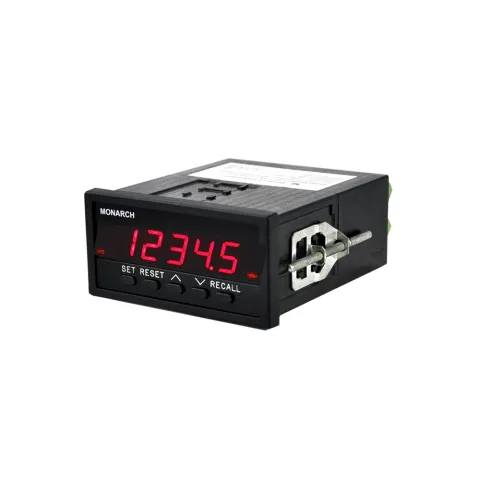

The ACT-3X Panel Tachometer/Totalizer/Ratemeter is a powerful NIST calibrated, fully programmable tachometer and totalizer. It accepts inputs from all Monarch speed sensors or from any standard TTL generating device. The unit operates from 120/240 Vac input power or from 12 or 24 Vdc input power (optional). Programming is easily performed through the 5 front panel pushbuttons or using the free downloadable PM Remote Software.

The ACT-3X Panel Tachometer is an extremely versatile instrument. The user has complete control of the unit configuration. Power may be either 115 - 230 Vac (50/60 Hz), or optionally, 12 Vdc or 24 Vdc. Input signals are accepted (on Channel 1) from optical, proximity, magnetic, infrared or laser sensors, or direct TTL or external AC sources. A second auxiliary input (Channel 2) may be used for instrument control and remote resetting. There are several remote communication options - RS232, USB or Ethernet and the optional remote software can be used to program the unit or display data locally. The unit is suitable for panel mounting or bench top use, with convenient screw terminal connections on the rear panel of the instrument.

Set up for single-channel monitoring. Programmable scale factor with menu selection for multiple pulses per revolution, linear rates, single event trip speeds (using auxiliary input), and rate of change in RPM. A TTL pulse repeater output is standard. Recommended sensors with PN -W (= tinned leads), ROS-W, ROS-HT-W-25, P5-11, PS-12, M-190W, IRS-W, ROLS-W, RLS-W, SLS-115/230, CSLS, and GE-200HP Gas Engine Sensor (with amplifier).

Features:

• 1/8 DIN sized
• 5-digit LED display
• 5 to 999,990 RPM range
• Universal sensor inputs
• NIST Traceable Certificate included
• User-configurable with front panel pushbuttons or free downloadable PM Remote Software
• View real-time data on PC
• Record data in .CSV format in real time
• Universal ac power 100-240 Vac, 50/60 Hz or optional 12 or 24 Vdc power
• Standard pulse repeater output
• Single event capture from start-stop pulses, in units such as MPH, CM/sec, etc. using two sensors - for the linear rate of travel on the second input channel
• Optional 4-20 mA or 0-5 Vdc scalable output
• Optional Ethernet or USB communications
• Optional alarm relay outputs

Applications:

• Process monitoring
• Research and development
• Field testing
• Engine performance analysis
• Interface to PLCs
• Trip speed testing
• Verification of rate of change (speed)
• Single-event capture
• Predictive maintenance

For more information, please see Data Sheet
