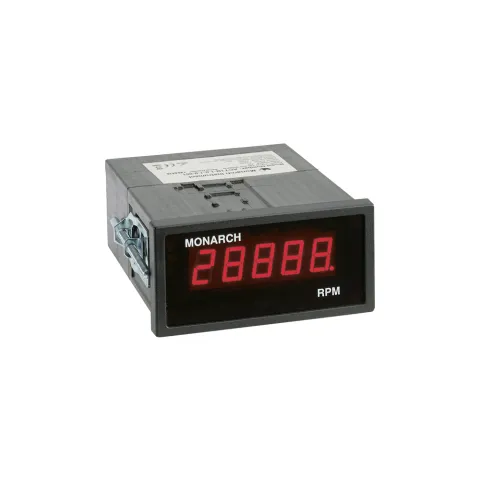

Monarch Instrument ACT-1B Panel Tachometer

The ACT-1B is an economical and easy-to-use digital tachometer that displays rotational speed directly in RPM or RPS on a 5-digit red 0.56" high LED using a speed sensor providing a single (or multiple) pulse(s) per revolution. The number of pulses per rev is factory set at time of ordering and can be user programmed from 1 to 999 using the optional USB programming cable and free downloadable PM Remote Software. Power may be either universal 100 to 240 Vac (50/60 Hz) or optional 12 Vdc or 24 Vdc isolated. The ACT-1B accepts input signals from optical, proximity, magnetic, infrared or laser sensors, or direct TTL or external ac inputs. The ACT-1B is suitable for panel mounting or bench top use with convenient screw terminal connections on the rear panel of the instrument.

Features:

• Noncontact operation from optical, infrared, laser, proximity, and magnetic sensors or direct TTL and 3.3 to 50 Vac signals
• Economically priced
• 1/8 DIN sized
• 5-digit LED display
• 5 to 99,999 RPM range
• Universal sensor inputs
• Compatible with most speed sensors
• User-configurable (Requires optional USB programming cable and free downloadable PM Remote Software)
• View real-time data on PC (Requires optional USB programming cable and free downloadable PM Remote Software)
• Store data in Excel File in real-time (Requires optional USB programming cable and free downloadable PM Remote Software)
• Universal AC power 100-240 Vac, 50/60 Hz or optional dc input power
• Optional 4-20 mA or 0-5 Vdc scalable output

Applications:

• Process monitoring
• Research and development
• Field testing
• Engine performance analysis
• Control panels
• Utilities monitoring
• Manufacturing processes
• Quality control
• Predictive maintenance

For more information, please see Data Sheet
