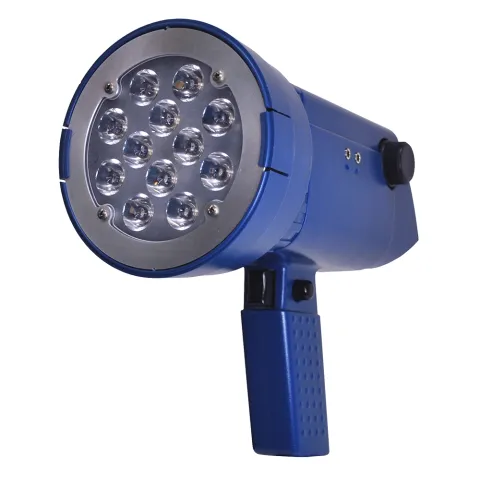

Monarch Instrument 6232-010 Nova-Strobe PBL LED Stroboscope with NIST Certificate

The Nova-Strobe™ PBL LED Stroboscope is a rugged industrial strobe providing extremely bright, uniform light output for performing stop motion diagnostic inspection and RPM measurements. The top-of-the-line Phaser PBL features an external phase delay, time delay, and virtual RPM mode. NIST Traceable Certificate included.

The Monarch Nova-Strobe LED family of rugged industrial stroboscopes provides an extremely bright, uniform light output for performing stop motion diagnostic inspection and RPM measurements. The twelve LED light source is extremely efficient which means long battery life and continuous cool operation. A wide operating range of 30-500,000 flashes per minute covers all applications.

The PBL has all the features of the DBL and adds external phase delay, time delay, and virtual RPM mode. The PBL will also run continuously, 24/7 with the power supply/recharger.

Features:

• Flash Range: 30 to 500,000 FPM
• Diagnostic inspection and RPM checks
• Tripod mounting bushing (1/4-20) in the handle
• CE marked and RoHS compliant
• Flash rate may be displayed in Flashes Per Minute (FPM) or flashes per second (Hz)
• Adjustable brightness control
• Lightweight industrial design
• 12-button keypad makes entering flash rates extremely quick
• Individual input and output TTL jacks (1/8 inch) provides power to remote sensors and allow daisy-chaining of multiple strobes
• Tachometer mode allows accurate speed measurement up to 500,000 RPM using external sensors
• Brightest portable LED strobes available
• Digital backlit LCD
• NIST Traceable Certificate included
• Continuous 24/7 operation

Benefits:

• Energy efficient with long battery life (8-10 hours typical)
• Extremely bright, uniform light output
• Completely silent
• Cool operation
• No lamp replacements
• Extremely high flash rates (up to 500,000 FPM)

Nova-Strobe PBL (6232-010) includes:

PBL Stroboscope with PSC-PbxU universal 115/230 power supply/recharger with interchangeable USA, UK, AUS, and Euro adapter wall plugs

• Documentation: operation manual, product registration card, and NIST Traceable Certificate
