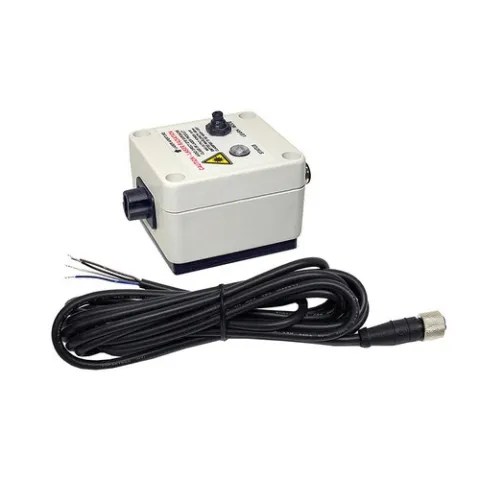

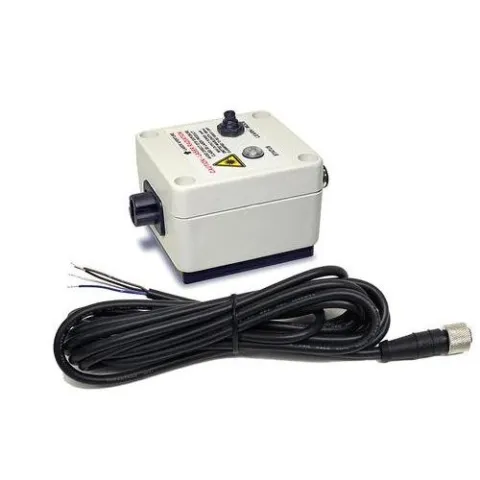

Monarch Instrument 6180-038 CSLS Compact Smart Laser Sensor with 6 ft Cable w/ Tinned Leads and 12 in of T-5 Reflective Tape

Includes:

• 6 ft. power/output cable with tinned leads
• 12 in. of T-5 Reflective Tape

The Compact Smart Laser Sensor (CSLS) is a selfcontained optical sensor intended to be used to make non-contact speed measurements from rotating targets at distances up to 65 feet (19.8 m). The sensor has both digital pulse and analog outputs to provide non-contact reference points to balancing equipment or signals to a vibration analyzer. The sensor will track surface irregularities on rotating shafts and provide pulse outputs from reflective tape, contrasting colors and keyways. The sensor is IP64 rated and is suitable for use in dusty, damp environments.

The unit has a removable plate with 1/4-20 bushing for tripod mounting. A single pushbutton and LED indicator allow for easy field setup. Supplied with 3 meter power/signal cable with molded M12 connector.

Features:

• Rugged, compact, and lightweight
• Single pushbutton operation
• 1-500,000 RPM range
• TTL 0-3.0 V pulse output
• IP64 enclosure
• Analog output to provide reference points for balancing or vibration analyzers
• Measure rotating targets up to 65 feet away

For more information, please see Data Sheet and Instruction
