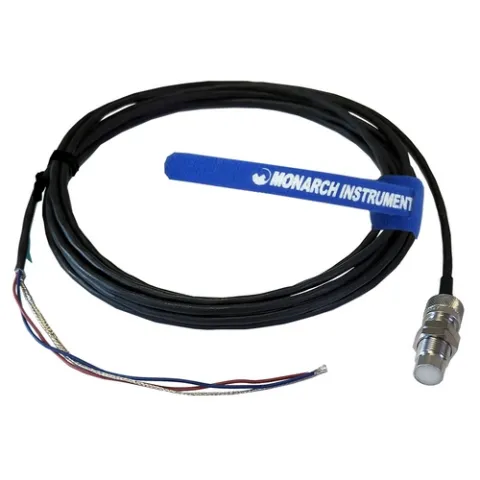

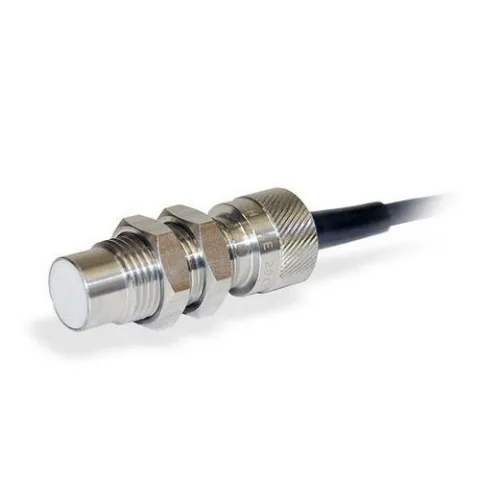

Monarch Instrument 6180-014 GE200 HP Inductive Sensor with 15 ft Cable

The GE200 HP is a non-contact electromagnetic inductive sensor designed for making RPM measurements on gasoline engines. The sensor will detect the high voltage flux field being induced from ignition coils or magnetos on 2 or 4 cycle gasoline engines. The GE200 HP must be connected to the Monarch amplifier module, which provides input power and a TTL pulse output. The GE200 HP includes an integral 15 foot (5 m) cable that can be extended to 150 feet (50 m). The Monarch amplifier module has a 1.5 foot (45.72 cm) cable with 3 tinned wires and a ground shield or 1/8 (3.5 mm) phone plug termination.

NOTE: Amplifier module required for proper operation of GE200 HP Inductive Sensor.

For more information, please see Instruction
