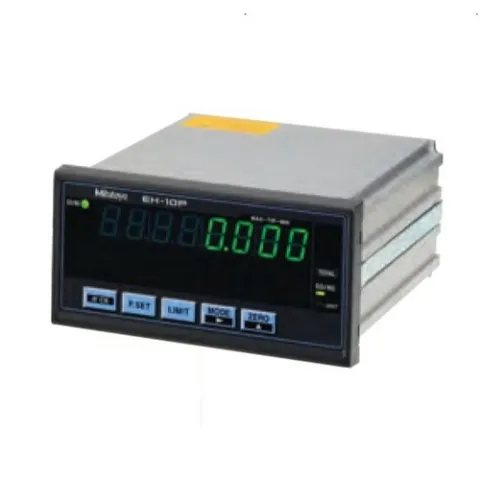

Mitutoyo 542-075A EH-101P Counter - Multi-Function Type for LGE, LGF, LGK, LGB, LGM, LG, LGH Gage Heads (1 Inputs)

The Mitutoyo EH Counter is a multi-function, multi-feature display with models available to utilize almost any Mitutoyo gage.

The multi-function display abilities of the Mitutoyo EH Counter delivers excellent versatility for a range of measuring and display applications. Equipped with zero-setting, presetting and tolerance judgement which sets the displayed value at any position of the spindle, making multiple measurements faster without losing accuracy. The dual input model can also add or subtract gages. USB output allows connection to the optional SENSORPAK live-reading software.

Features:

• Preset function sets display at any value with counting beginning at the preset value
• Multifunctional counter equipped with zero-setting, presetting and Go/No-Go judgment
• RS-232C and USB are equipped as standard, making data transfer to a PC possible
• A multi-point (max. 12 points) measuring system can easily be configured with the built-in RS link networking function
• Panel-mountable DIN size allows for easy system integration
• Peak mode feature: Max, Min, and TIR (can be toggled)
• Compatible gage heads (depending on model) include: LG, LGB, LGD, LGE, LGF, LGK, LGM, LGS, or SPC output gages
• Go/No-Go LED

For more information, please see Data Sheet
