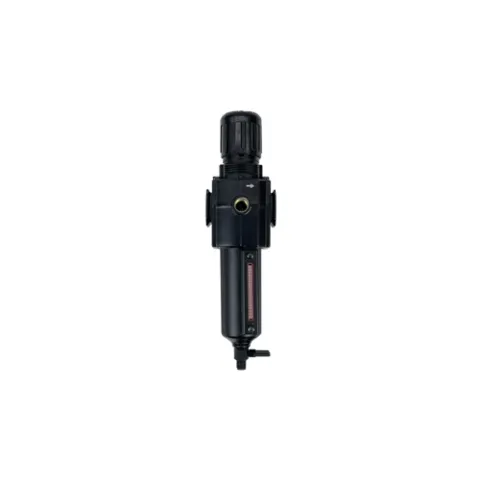

MCB73-38 3/8" 123 SCFM Filter/Reg. 40M Element 5-150 PSI by Midwest Control

00 Reviews Write review
MCB73-38 3/8" 123 SCFM Filter/Reg. 40M Element 5-150 PSI by Midwest Control
Click to zoom
  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews
Condition: new
Warranty

Overview

    The Filter Regulator is One of the Most Popular Air Preparation Units. The Air Filter is Used to Separate Dust, Dirt, Moisture and Other Contaminants from the Compressed Air Line and Combined with a Relieving Regulator to Maintain a Steady Outlet Pressure Unaffected by Inlet Pressure Fluctuation

  • Quick Release Bayonet Metal Bowl with Sight Glass
  • 40 Micron Element Standard MC4438-03
  • Optional 5 Micron Element Available MC4338-01
  • Manual Drain Standard MC619-50
  • Bowl Size 3.5 Fluid Oz.
  • Relieving Regulators Allow Reduction of Outlet Pressure When System is Dead Ended
  • Full Flow Gauge Ports (2) 1/4" FNPT
  • Maximum Pressure: 250 psig
  • Spring Pressure Range 5-150 psi
  • Operating Temperature: 0°F to 175°F

    Recommended Accessories
  • Auto Drain MC4000-51R
  • Panel Nut Only MC5191-88
  • Wall Mounting Bracket MC4424-50
  • Tamper Resistant Cover MC4455-51
  • Neck Mount Bracket with Nut MC4461-50
  • Back Mounted Pressure Gauge DABS-B20-XXX
