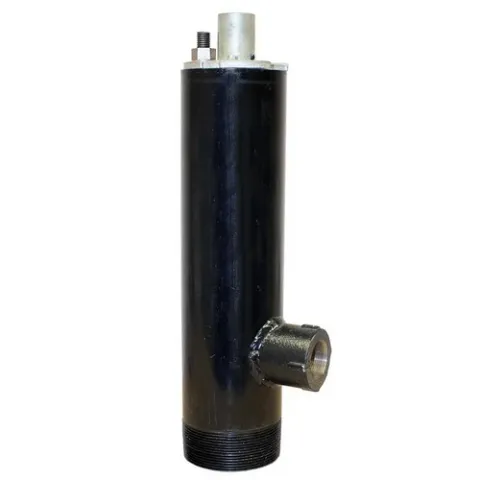

Merrill SP803WCB SP800 Pitless Unit, Submersible Pump, Watertight Water Well System, WCB Cap, 8" x 3'

Features:

• Tested and approved by Pitless Adpater Standard PAS-1, PAS-2, PAS-97(2019)(R 2023), ASSE Standard #1093-2019(R 2023), and Illinois Code
• 100% pressure test at the factory insures the unit seals properly and that parts are pinned in place
• By simply turning the stainless steel adjusting nut at the top of the well enables a positive mechanical seal. Custom wrench available from the factory
• No obstruction like common pitless adapters and a recessed sealing surface in the discharge outlet insures an undamaged seals when the pump is pulled or the well is re-worked
• The stainless steel discharge and elbow (cast iron elbow on 8" unit), insuring a long life and easy disengagement for future work on pump or well
• One standard neoprene O-ring to assure a safe and simple installation, and easy servicing. The ground screw in the support plate provides an accessible connection for the electrical ground of the pump cable
• The male thread, plain end, or compression is available at the end of the pitless casing for easy connection to the well
• The support plate holds the weight, minimizing the danger of losing the pump or pipe down well. It also includes a cable slot to allow pump installation and service without a splice in the submersible cable
• By simply turning the stainless steel adjusting nut, the entire water system outside the well can be drained without pulling the pump
• Watertight caps meet all well codes, and stainless steel elbow fittings are available for discharge

Ratings:

• Max Pressure: 150 PSI
• Max Temperature: 180°F

For more information, please see Data Sheet and Catalog
