Overview

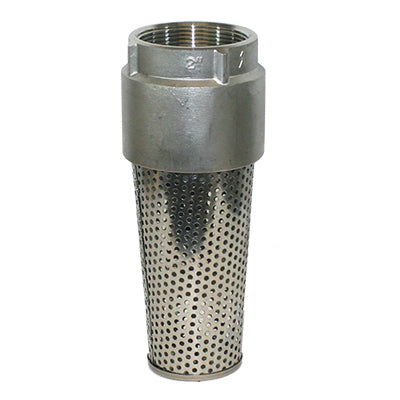

For all your pump and centrifugal applications, use the best - a stainless steel foot valve. Extremely durable and corrosion-resistant.
- Solid 304 stainless steel construction
- Stainless steel check valves are rated for a maximum weight of 2,000lbs. in tension (down pull)
- All parts stainless steel - spring, lock nut on poppet, and nut retaining cup locks spring to nut
- Guide bearing of Delrin around poppet stem for straight operation and eliminates wear
- No-spin poppet for demanding installation directly above the submersible pump
- Ideal for Ag chemical applications - WARNING - not to be used with anhydrous ammonia
- Rated at 450 psi max
- Max temp. 190 degrees Fahrenheit
