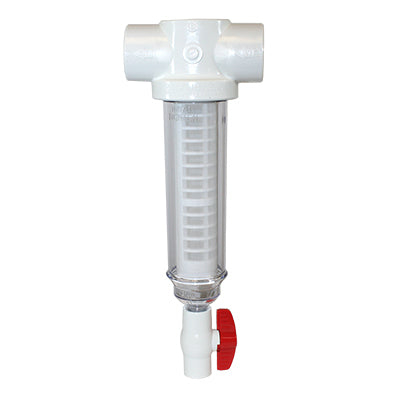

Merrill 1.5-60-F Spin Down Sediment Filters - 1.5" / 60 Mesh - 254 Micron / 0.010"

Spin-down model

- SLIPxSLIP connections

- Reusable polyester or stainless steel screens with several mesh sizes available

- Sediment is visible through clear cover and quickly removed by opening ball valve at bottom of filter cover

- Clear cover easily removed for total cleaning (No tools required - use of tools voids warranty, hand tighten only)

- Flow capacity for the entire system

- Max. operating pressure 150psi at 73 degrees Fahrenheit

1" Pipe Size:

- Length: 8-3/8"

- Width: 5"

- Recommended Flow Rate: 2gpm minimum & 20gpm maximum

1-1/2" Pipe Size:

- Length: 12"

- Width: 5-1/2"

- Recommended Flow Rate: 10gpm minimum & 50gpm maximum

2" Pipe Size:

- Length: 15"

- Width: 6"

- Recommended Flow Rate: 18gpm minimum & 100gpm maximum
