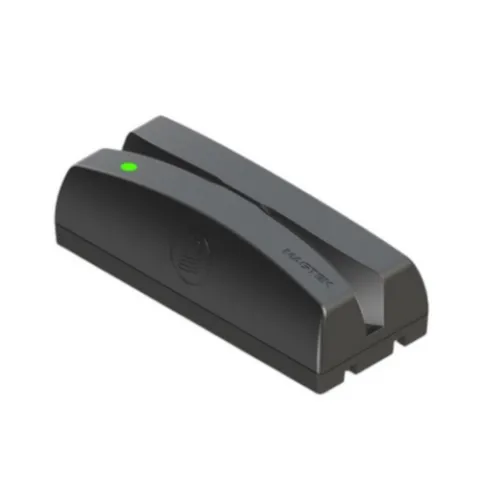

Magtek 21073086-KBE Dynamag Duo Secure Card Reader Authenticator, USB Keyboard Emulation

MagTek's Dynamag Duo, a secure card reader authenticator (SCRA), is a compact magnetic stripe card reader that conforms to ISO standards. In addition to reading multiple tracks of data from either side of a card, the device also includes MagnePrint technology. MagnePrint data is included with the track data on each transaction. The devices are compatible with any host with a USB interface. Cardholders can swipe their cards in either direction, facing either way.

An LED (Light Emitting Diode) indicator on the device cover provides the cardholder and operator with continuous status of device operations. The device conforms to the USB HID (Human Interface Device) Class specification Version 1.1, making it forward-compatible with subsequent USB HID hosts and hubs. This allows host applications designed for most versions of Windows to easily communicate to the device using native platform SDKs.

The device is operated in HID with Keyboard Emulation (herein referred to as "KB mode").

Features:

• Hardware Compatible with a PC or any computer or terminal having a USB interface
• Bi-directional card reading
• Reads encoded data that meets ANSI/ISO/AAMVA standards
• Reads up to three tracks of card data
• Secure Red/Green/Amber LED for status
• Compatible with USB specification
• Compatible with HID specification
• Can use standard Windows HID driver for communications; no third party device driver is required
• Programmable USB serial number descriptor
• Programmable USB Interrupt In Endpoint polling interval
• Programmable Keyboard Table to support alternate languages
• Non-volatile memory for property storage
• Detachable USB cable using standard USB Micro-B connector
• Supplies 54 byte MagnePrint™ value
• Contains a unique, non-changeable serial number which allows tracking each device
• Encrypts all track data and the MagnePrint value
• Provides clear text confirmation data including card holder's name, expiration date, and a portion of
• the PAN as part of the Masked Track Data
• Mutual Authentication Mode for use with Magensa.net®

For more information, please see Manual
