Magtek 21073062-90135200 Dynamag Secure Card Reader Authenticator, USB Keyboard Emulation, Configured for Booker Services

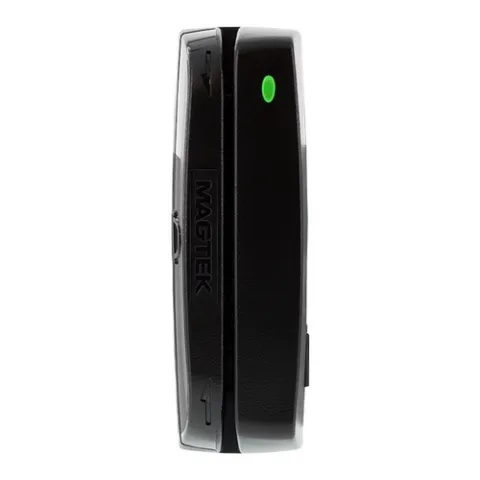

MagTek's Dynamag, a secure card reader authenticator (SCRA), is a compact magnetic stripe card readers that conform to ISO standards. In addition to reading multiple tracks of data from a card, the Readers also include MagnePrint technology. The MagnePrint data will be included with the track data on each transaction. In order to maximize card security, the Readers incorporate data encryption within the head to protect the card contents and MagnePrint information. The Readers are compatible with any device having a host USB interface. A card is read in the swipe readers by sliding it, stripe down, through the slot either forward or backward; in the insert reader, it is read by inserting with the stripe to the right or left depending on the head orientation.

An LED (Light Emitting Diode) indicator on the Reader cover provides the operator with continuous status of the Reader operations.

The readers conform to the USB HID (Human Interface Device) Class specification Version 1.1. This allows host applications designed for most versions of Windows to easily communicate to the readers using standard Windows API calls that communicate to the reader through the HID driver that comes with Windows.

Features:

• Hardware Compatible with a PC or any computer or terminal having a USB interface
• Bi-directional card reading
• Reads encoded data that meets ANSI/ISO/AAMVA standards
• Reads up to three tracks of card data
• Secure Red/Green/Amber LED for status
• Compatible with USB specification
• Compatible with HID specification
• Can use standard Windows HID driver for communications; no third party device driver is required
• Programmable USB serial number descriptor
• Programmable USB Interrupt In Endpoint polling interval
• Programmable Keyboard Table to support alternate languages
• Non-volatile memory for property storage
• Detachable USB cable using standard USB Micro-B connector
• Supplies 54 byte MagnePrint™ value
• Contains a unique, non-changeable serial number which allows tracking each reader
• Encrypts all track data and the MagnePrint value
• Provides clear text confirmation data including card holder's name, expiration date, and a portion of the PAN as part of the Masked Track Data
• Mutual Authentication Mode for use with Magensa.net

This device only works with Booker software and does NOT work with Mindbody software.

For more information, please see Data Sheet
