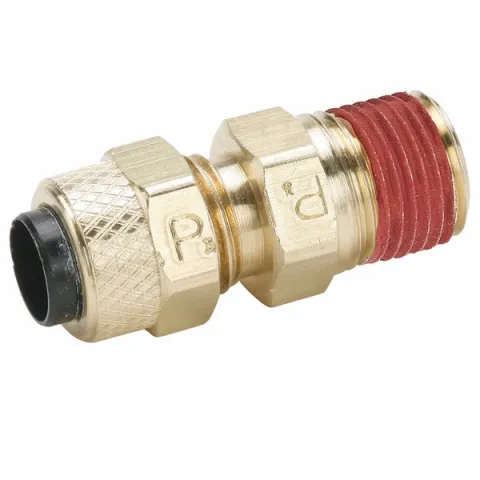

Legris Poly-Tite fittings are designed to speed any installation. The body, nut and sleeve are furnished pre-assembled, ready for installation. The acetal copolymer sleeve resists creeping and stress caused from compression. The black acetal copolymer also resists ultra-violet ray attack and has excellent dimensional stability. Poly-Tite nuts will rotate around the sleeve as it tightens to prevent twisting and weakening of the plastic tubing. Poly-Tite fittings can be assembled and disassembled repeatly. This connector has 1/4" Compression to 1/8" Male Pipe connections.
Use with the following Parker Parflex Division tubing:
- Polyethylene
- Nylon
- Polypropylene
- Vinyl
Markets
- Dental
- Packaging
- Car Wash
- Printing
- Machine tools
Features
- Designed for use with thermoplastic tubing
- Machined in tube support
- Black acetal copolymer sleeve
- Brass sleeve available for soft metal tubing
- Knurled nut for ease of hand tightening
- Pre-assembled fitting
- Chrome plated and stainless steel couplers available
Applications
- Pneumatic circuits
- Coolant lines
- Measuring
- Water lines
