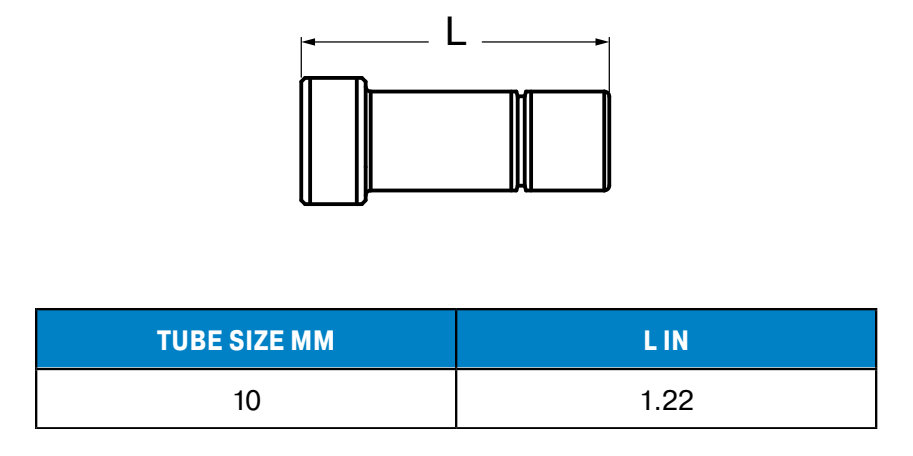

Legris 139PLP-10M 139PLP Series 10 mm Prestolok PLP Metal Push-to-Connect Nickel Plated Instant Fitting, Plug

Being the world's leader in push-to-connect fitting technology Parker's Prestolok PLP nickel plated brass fittings provide a simple way of connecting tubes to a fitting in order to create a fluid distribution network. Prestolok PLP push in metal fittings reduce assembly time by eliminating the use of a sleeve and tightening of a nut required in compression style fittings. Simply push the tubing into the fitting until it bottoms. To disassemble, press the release button, hold against the body and pull tubing from the fitting. A thread sealant is applied to all male threads eliminating the possibility of system contamination from PTFE tape.

Markets:

• Industrial
• Automotive
• Semi-conductor
• Packaging
• Robotics
• Climate control
• Textile
• Vacuum

Applications:

• Air lines
• Inert gases
• Oil lines
• Vacuum lines

Technical Specifications:

• NPT Threads
• Stainless steel grab ring
• Nitrile seal
• Nickel plated brass body
• Polyacetal release button
