Overview
1" Inline Check Valve
Features:
- Wetted surfaces contain less than .25% lead content
- Lead-free brass body
- Can be installed in any position
Approvals:
- ANSI/NSF 61-08
- ANSI/NSF 372
- Uniform Plumbing Code (cUPC)
- IAPMO/ANSI Z1157-2014
- NSF/ANSI 14-2014
- Conforms to IAPMO PS 117
Pressure/Temperature Rating:
- 200 WOG
- Max. 250°F
Install 5 pipe diameter minimum downstream from pump discharge or changes in direction to avoid flow turbulence. Flow straighteners may be required in extreme cases.
Note: On pump discharge, the preferred check valves are: inline, spring assisted, center-guided, lift checks.
Warning: Do Not Use For Reciprocating Air Compressor Service

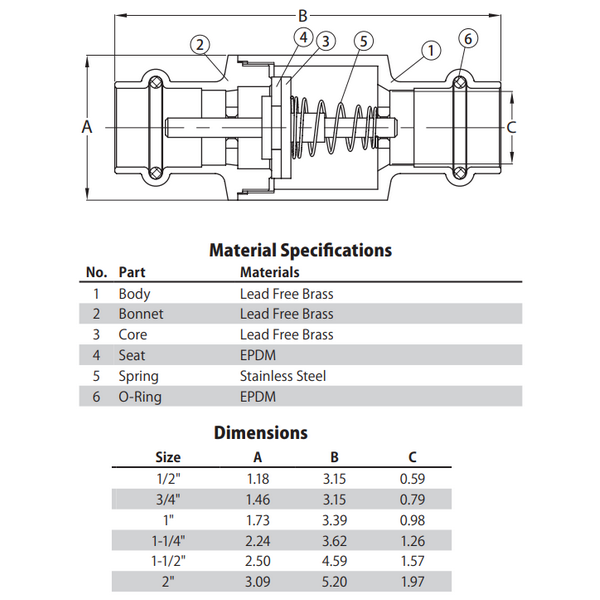

Material Specifications and Dimensions
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
