Jomar 105-525 2-1/2" Wafer Check Valve Cast Iron Flanged Connection NSF Approved Class 125

  • Overview
  • Customers Also Bought
  • Your Recently Viewed Items
  • Reviews

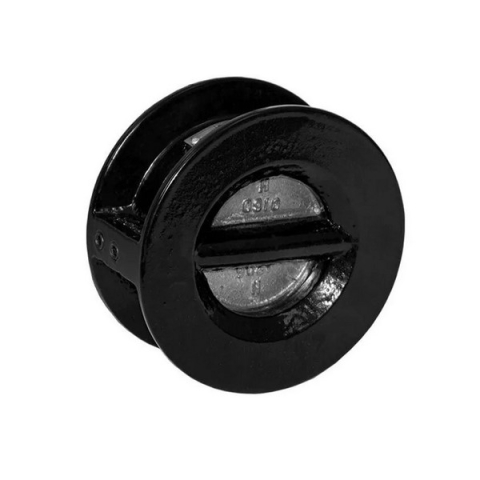

Jomar 105-525 2-1/2" Wafer Check Valve Cast Iron Flanged Connection NSF Approved Class 125
Click to zoom
  • Brand:Jomar
  • Part #:105-525
  • Model #:F-592
Factory Warranty
Warranty
Condition
Condition: new
  • Regular Price: $243.22
Safe Checkout
Fully secured
Money back Guaranty
100% satisfaction

Overview

2-1/2" Wafer Check Valve, Cast Iron, Flanged Connection, NSF Approved, Class 125

Features:

  • Two Torsion Springs Activate Each Set of Valve Plates
  • Quick-Close Action Prevents the Medium Flowing Back
  • Easy Installation onto Either Vertical or Horizontal Pipeline
  • Class 125
  • Temperature Rating - 14°F - 185°F
  • Port Size - 2-1/2"

Part Material:

  • Body - A536 Ductile Iron + EPDM
  • Disc - A351 Stainless Steel
  • Stem - 316 Stainless Steel
  • Spring - 316 Stainless Steel
  • Washer - PTFE
  • Gasket - PTFE
  • Sealing - EPDM/NBR
  • Plug - 304 Stainless Steel
  • Name Plate - 304 Stainless Steel
  • Left Ring - A1035 Chromium

Certifications/Approvals:

  • NSF/ANSI/CAN 61
  • NSF/ANSI 372
  • Complies with API 594 Standard
  • ASME B16.1

Install 5 pipe diameters minimum downstream from pump discharge or changes in direction to avoid flow turbulence. Flow straighteners may be required in extreme cases.

Note: On pump discharge, the preferred check valves are: inline, spring assisted, center-guided, lift checks.

For more information, please see Specification Sheet
