Irrometer 1002 Service Kit, Test Gauge version for R/SR/LT

Service Units are designed to aid users in the placement and installation, interpretation of readings, and maintenance of IRROMETER soil moisture indicators. Several helpful items are included in the kit. The primary component of a Service Unit is a small hand vacuum pump. The pump is designed to seal on the reservoir portion of the instrument body and is used to create a vacuum manually, evacuating any air contained in the tensiometer. These instruments function with the greatest accuracy when all air has been removed. One Service Unit will service multiple instruments. The #1002 Test Pump Service Unit is different in that it includes a pump with an integral vacuum gauge that registers in centibars (cb) or kilopascals (kPa). This is used to validate accuracy of the gauge on the IRROMETER being serviced.

Features:

• Designed for outdoor field use
• Non-corrosive construction
• Easily serviceable
• Long lasting
• PUMP BODY MATERIALS:
  • Anodized aluminum tube and shaft;
  • rubber end fittings,
  • plunger,
  • suction cup and finger valve;
  • plastic knob and coupling;
  • nylon ball
• DIMENSIONS:
  • Compressed - 11.06 in. (28.1 cm)
  • Fully Extended - 16.25 in. (41.27 cm)
  • Suction Cup Diameter - 2.25 in. (5.715 cm)
  • Tube Diameter - 1.25 in. (3.175 cm)
• WEIGHT: 1.44 lb. (.654 kg) - includes #1008 gauge
• Standard Vacuum Gauge Specifications:
  • DIAL SIZE: 2 in. (51 mm)
  • CASE: Hermetically Sealed Thermo Plastic Rubber
  • WINDOW: Inner - Polycarbonate, Outer - Butyrate
  • DIAL: Scale of 0-100 cb (kPa), white with contrasting green markings.
  • ACCURACY: +/- 3-2-3% of span ASME B40.1 Grade B
  • MECHANISM: Bronze Bourdon Tube
  • CONNECTION: Standard 1/4 in. NPT - Brass Bottom Mount
  • OPERATING TEMPERATURE: -40° to 150° F (-40° to 65° C), 32° to 150° (0° to 65° C) for water service

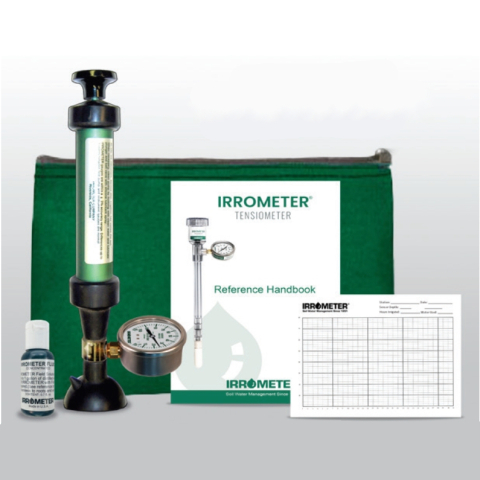

Includes:

• hand vacuum pump with test gauge,
• pad of 4.5 x 6.25 in. (11.43 x 15.87 cm) chart forms,
• 1 fluid ounce (29.57 cc) bottle of IRROMETER Fluid (concentrated dye)
• copy of IRROMETER's Moisture Indicator Reference book.
• Canvas Bag
